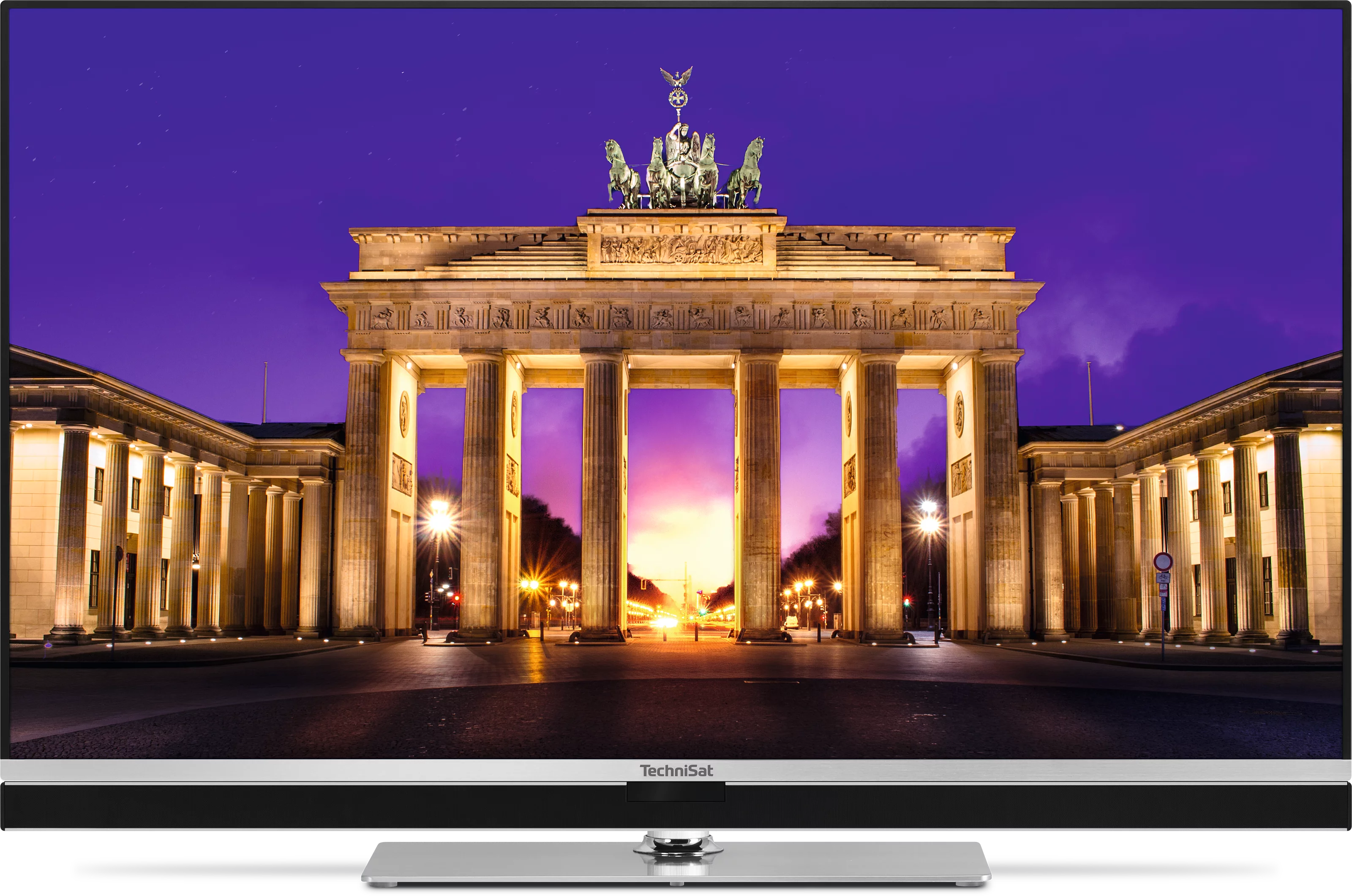

TECHNIMEDIA UHD+ 43 SL

TechniSat added value services
SFI+: Yes
ISI-Mode: Yes
TECHNIFAMILY: Yes
ISIPRO: Yes
AUTOINSTALL: Yes
TECHNIMATIC: Yes

Multimedia
DVR function: Ja
DVR storage medium: USB, NAS
Timeshift: Yes
Recordings edition function: Yes
Recordings folder management: Yes

WLAN
WLAN: integriert
2,4 GHz: Yes
5 GHz: Yes
IEEE 802.11n: Yes
IEEE 802.11g: Yes
IEEE 802.11b: Yes
IEEE 802.11a: Yes

Ambient operating conditions
Humidity: 10 ... 75 %
Ambient temperature: 5 ... 35 °C

LNB control
Vertical: 14 V
Horizontal: 18 V
Band switch: 22 kHz
Current consumption: max. 400 mA (kurzschlussfest)
DiSEqC: 1.0 / 1.2 / SCR1 = EN50494, SCR2 = EN50607

Internet/Network
ISIO Internet: Yes
HbbTV: Yes
VoD services: Ja
Webbrowser: Yes
HTML 5 support: Yes
Internet speed test: Yes

Audio
HDMI ARC: Yes
Speakers: 2 x 2-way sound system

Connections
HDMI™ (in): 3 (4K 50/60p / HDCP 2.2)
USB: 2 (USB 3.0)
Common Interface Plus (CI+): Yes
Smartcard reader: Yes
Digital optical audio out: Yes
Scart: 1 (via Mini-Scart-Adapter)
Ethernet 1Gbit/s (RJ-45): 1
F socket: 2
IEC-Connector: Yes
Audio out analogue (3,5 mm jack): 1
Headphone output: Yes (3,5mm Klinke)

Decryption system
Nagravision: Yes
CI+: Yes (1x)

Dimensions / Weight
Weight without stand: 14,6 kg

Display
Type: UHD eLED
Resolution (vertical and horizontal): 3840 x 2160
Size (cm): 108 cm
Size (inches): 43
UHD/4K upscaling: Yes
SD: Yes
HD: Yes
UHD: Yes
2160p: Yes
1080p: Yes
1080i: Yes
720p: Yes
576p: Yes
576i: Yes
480p: Yes
480i: Yes
3D-Technologie: Yes
Converter 2d <3d: Yes
Angle of view: 178° / 178°
Format: 16:9
Picture in Picture (PIP): Yes (2x SD, 2x HD, 1x UHD u. 1x HD, 1x UHD u. 1x SD, 1x SD u. 1x HD)
Picture and Picture (PAP): Yes (2x SD, 2x HD, 1x UHD u. 1x HD, 1x UHD u. 1x SD, 1x SD u. 1x HD)
Zoom: Yes
Freeze frame: Yes

General characteristics
Appearance: Slim 55mm

Handling/comfort
Smart Home central unit: Yes für Smart Functions, nur in Verbindung mit Z-Wave Stick 1, (Art.-Nr. 0000/9536)
Smart Home client: Yes
Electronic Program Guide (EPG): Ja
Quick start: Yes
Parental Control: Ja
Media Player: Yes
Channel number mix: Yes
Teletext: Yes
Alarm: Yes
Autostandby: Yes
Sleep timer: Yes
Hotel mode: Yes
Clock: Yes

Hotel mode
Protected access to hotel mode: Yes
Customisable start screen: Yes
Energy card function: Yes
USB cloning function: Yes
Multimedia connectors: Yes
Lockable volume: Yes
Menu locking: Yes
Control panel lock: Yes
Radio mode: Yes
Alarm function: Yes
Sleep timer: Yes
Mixing of channel slots: Yes
Multicode remote control: Yes
Selectable start source: Yes
Selectable start channel: Yes

Other features
OSD languages: English, German, French, Greek, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian
Total programme memory: 9.999
Regional channel selection: Yes

Power consumption
Model designation: TECHNIMEDIA UHD+ 43 SL
Energy class: A
Visible screen size (cm): 108
Visible screen size (inches): 43
In operation: 67 W
annual energy consumption when switched on: 98 kilowatt hour per annum
Standby: 0,48 W
Off status: 0 W
Power switch: Yes
Software update: 28 W
SFIplus updating: 28 W
Standby fast start: 28 W

Power supply
Nominal voltage: 230 V
Frequency: 50 Hz
Mains adapter: internal

Ready for reception
HD+: Yes

Streaming
DLNA Server: Yes
DLNA Client: Yes
Cloud store: Ja
Parental Control: Yes
TechniCast: Ja (optional über Dongle)

Supported formats & codecs
Video-Codecs: MPEG-2, MPEG-4, H.264 (bis H.264/AVC Level 4.2), H.265, DivX, VC-1
Video-Formats: M4V, MP4, MKV, MOV, MPG, TS, TS4, VOB, WMV, Xvid, M2V, M2TS, AVI, ASF
Picture-Formats: BMP, JPEG, GIF, PNG, TIFF
Audio-Formats: WAV, MP3, AAC, FLAC, M4A, MP2, OGG, DDAC3, WMA

TechniSat CONNECT
SFI: Yes

Tuner
Tuner type: 3xTwin-Tuner
Twin-Tuner: Yes
Reception on: UHD ( H.265/HEVC), HDTV (MPEG-4), SD (MPEG-2)
DVB-S tuner: 2
Single Cable Solution (SatCR): SCR1 = EN50494, SCR2 = EN50607
DVB-C Tuner: 2
Tuner DVB-T2: 2
Analogue UHF/VHF/CATV tuner: 1
Satellite radio: Yes
Pay TV enabled: Yes
Cable radio: Yes
Internet radio: Yes
Input impedance: 75 Ω
TECHNISELECT 12 ready: Yes
TECHNIROUTER ready: Yes

Tuner - Analogue
Reception range: 47 ... 862 MHz
Video standards: PAL B/G, D/K, L/L, I

Tuner - Cable
Reception range: 47 ... 862 MHz
Demodulation: 16-, 32-, 64-, 128-, 256-QAM
Symbol rate: 1,5 ... 7,2
FEC: Reed-Solomon (204, 188)

Tuner - Sat
Reception range: 950 ... 2.150 MHz
DVB-S: QPSK
DVB-S: 2 ... 45 (MCPC / SCPC)
DVB-S2: 8PSK - QPSK
DVB-S2: 10 ... 31 (MCPC / SCPC)
FEC: RS, LDPC, BCH

Tuner - Terrestrial
Reception range 1: 174 ... 230 MHz
Reception range 2: 470 ... 862 MHz
Demodulation: COFDM (QPSK, 16-QAM, 64-QAM)
Transmission mode: 2k/8k
Bitrate: 4,98 ... 31,67
FEC: 1/2, 2/3, 3/4, 5/6, 6/7, 7/8
Voltage supply: 5 V
Power supply: 0,03 A

wall bracket
VESA wall mounting standards: VESA 200 x 200
