Datenblatt als PDF downloaden

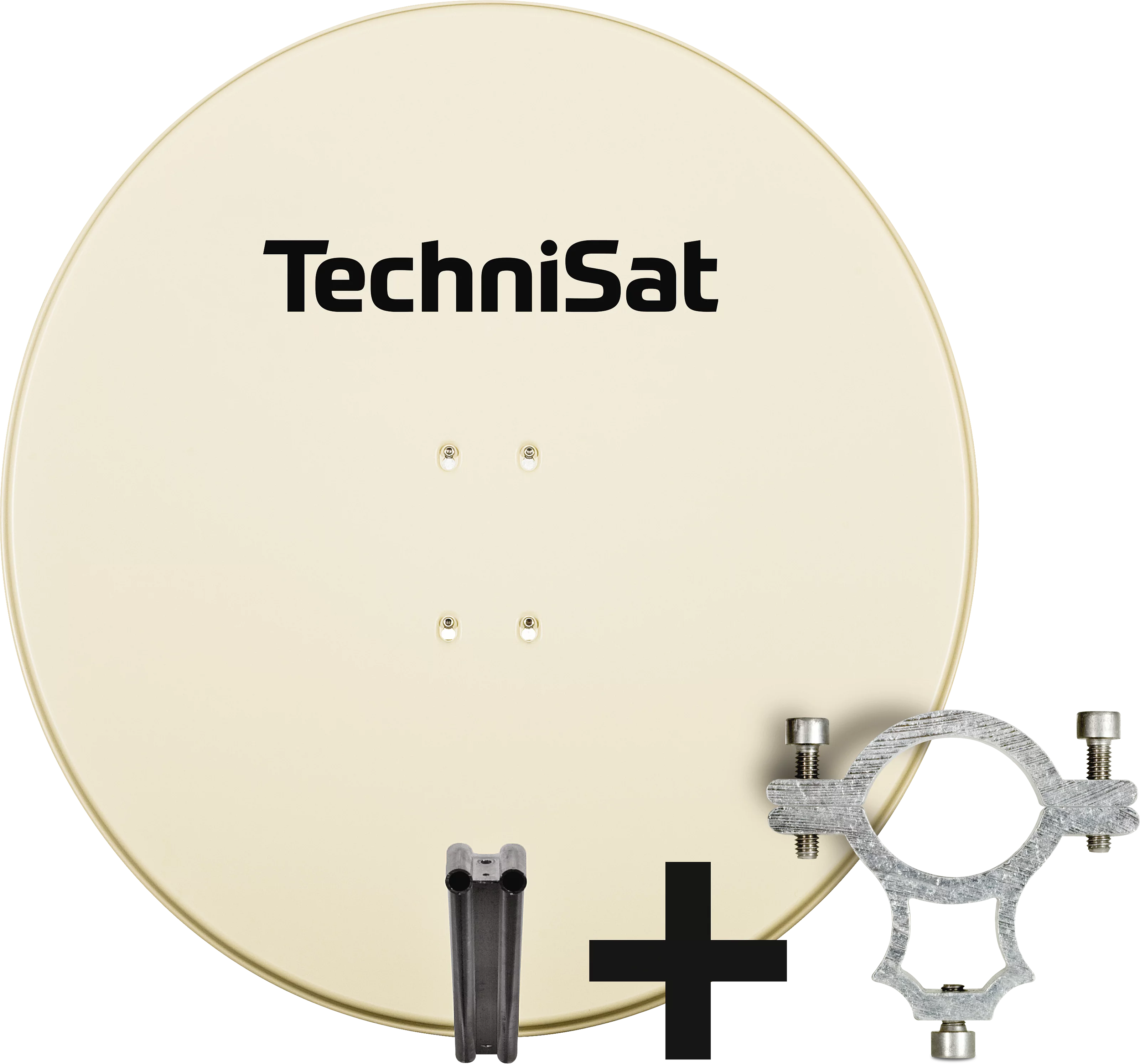

SATMAN 850 PLUS incl. LNB retaining clamp
Digital Satellite dish with a diameter of 85 cm and completly pre-installed AZ/EL-mount including 40 mm LNB bracket.
| Colour |
EAN |
Item no. |
Weight (Box) |
Weight |
Box |
| yellow with Smiley |
4019588585447 |
1585/1444 |
8,4 kg |
4,8 kg |
87 x 91,5 x 23 cm |
| slate/grey |
4019588385443 |
1385/1444 |
8,4 kg |
4,8 kg |
87 x 91,5 x 23 cm |
| beige |
4019588085442 |
1085/1444 |
8,4 kg |
4,8 kg |
87 x 91,5 x 23 cm |
| brick/red |
4019588485440 |
1485/1444 |
8,4 kg |
4,8 kg |
87 x 91,5 x 23 cm |
| polar/white |
4019588785441 |
1785/1444 |
8,4 kg |
4,8 kg |
87 x 91,5 x 23 cm |
| fir/green |
4019588285446 |
1285/1444 |
8,4 kg |
4,8 kg |
87 x 91,5 x 23 cm |
| Top Features |
- 85 cm dish made of first-class aluminum (powder-coated on both sides)
- For LNB's with feed ø 40 mm
- Ideal for wall and roof mounting
|
| Filter-Navigation |
| Diameter: 85 cm |
| General characteristics |
| Material strength: 1,6 mm |
| Coating: Powder-coated on both sites |
| Material: Aluminium |
| Technical data |
| Rated measurement: 0,85 m |
| F/D: 0,67 |
| G/T: 17,2 |
| Offset angle: 21 ° |
| Gain: 38,2 dBi @11,3GHz |
| Mast Ø: 65 mm max. |
| Feed reception: for 40 mm LNB |
| Scope of Delivery |
| Satellite dish antenna, AZ/EL bracket mount, LNB retaining clamp (40 mm), Screws, Instruction manual |
