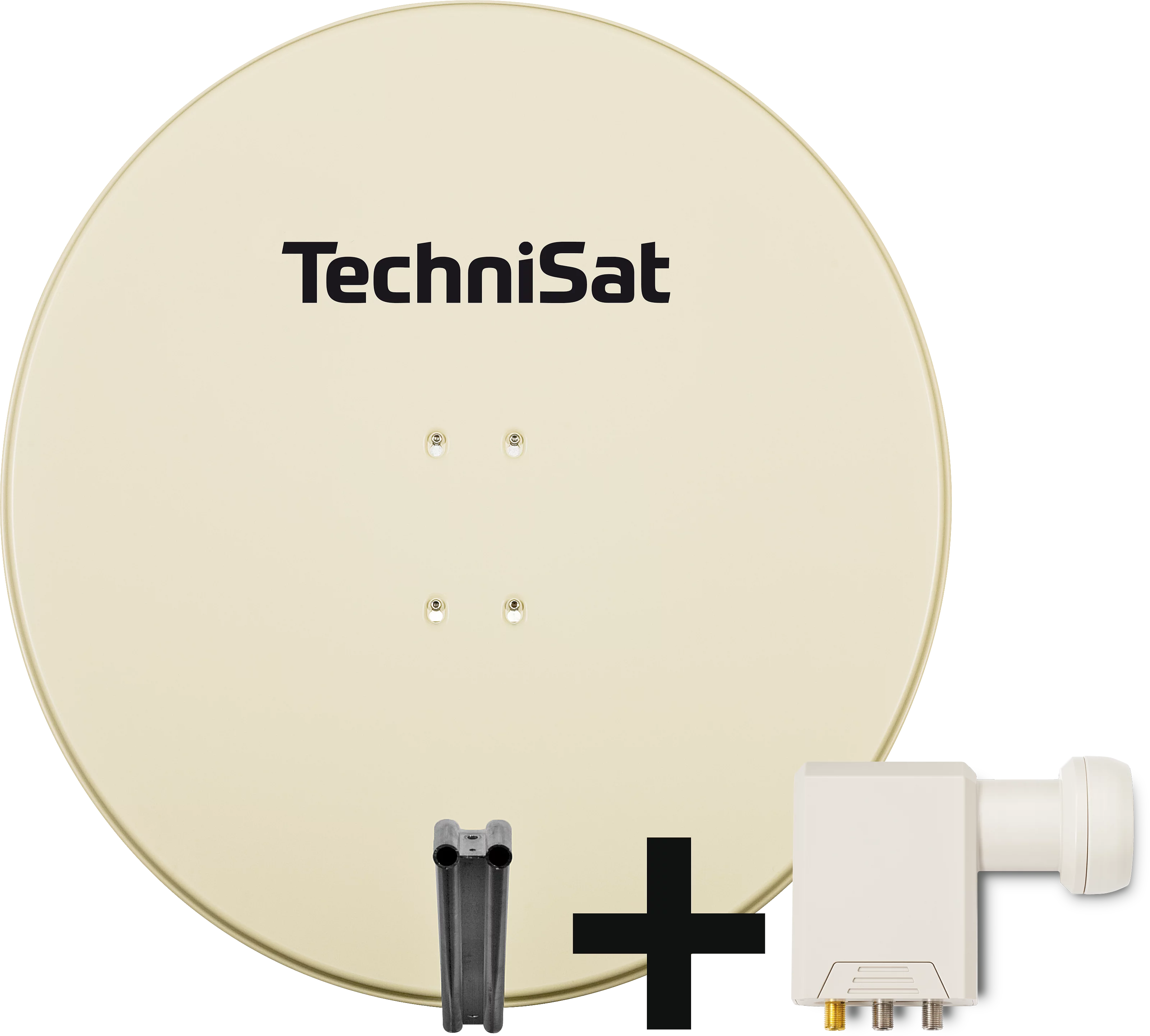

SATMAN 850 PLUS with SCR-LNB
Set bestehend aus SATMAN 850 PLUS (Antenne) und TechniSat SCR-LNB
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588785861 |
polar white |
6785/8886 |
8,8 kg |
5,2 kg |
89 x 85 x 7,5 cm |
92,75 x 88 x 23,5 cm |
| 4019588085862 |
beige |
6085/8886 |
8,8 kg |
5,2 kg |
89 x 85 x 7,5 cm |
92,75 x 88 x 23,5 cm |
| 4019588385863 |
slate/grey |
6385/8886 |
8,8 kg |
5,2 kg |
89 x 85 x 7,5 cm |
92,75 x 88 x 23,5 cm |
| 4019588585867 |
yellow with Smiley |
6585/8886 |
8,8 kg |
5,2 kg |
89 x 85 x 7,5 cm |
92,75 x 88 x 23,5 cm |
| 4019588485860 |
brick/red |
6485/8886 |
8,8 kg |
5,2 kg |
89 x 85 x 7,5 cm |
92,75 x 88 x 23,5 cm |
| 4019588285866 |
fir/green |
6285/8886 |
8,8 kg |
5,2 kg |
89 x 85 x 7,5 cm |
92,75 x 88 x 23,5 cm |
| Top Features |
- 85 cm Spiegel aus erstklassigem Aluminium (beidseitig pulverbeschichtet)
- Ausgelegt für den 6-Teilnehmer-Empfang
- 1 Orbitposition (z. B. Astra 19,2° Ost)
- Optimal für Wand- und Dachmontage
|
| Local oscillator |
| Low band: 9,75 GHz |
| High band: 10,7 GHz |
| LNB control |
| Vertical: 11,5 - 14,5 V |
| Horizontal: 16 - 19 V |
| General characteristics |
| Material: Aluminium |
| Material strength: 1,6 mm |
| Coating: Powder-coated on both sites |
| Colour: beige, polar white, slate-grey, brick red, fir green, yellow with smiley |
| Input frequency range |
| Low band: 10,7 ... 11,7 GHz |
| High band: 11,7 ... 12,75 GHz |
| Noise factor |
| Lower frequency range: 0,6 dB max. |
| Upper frequency range: 0,6 dB max. |
| Output frequency range |
| Low band: 950 - 1.950 MHz |
| High band: 1.100 - 2.150 MHz |
| Prepared for |
| Number of clients: 6 |
| Number of orbit positions: 1 |
| Technical data |
| Rated measurement: 0,85 m |
| F/D: 0,67 |
| G/T: 17,2 |
| Offset angle: 21 ° |
| Gain: 38,2 dBi @11,3 GHz |
| Mast Ø: 65 mm max. |
| Feed reception: LNB retaining clamp (40mm) |
| Scope of Delivery |
| DigitalSat-Antenne SATMAN 850 PLUS, AZ/EL-Halterung, LNB-Halteschelle SATMAN (40 mm ), SCR-LNB, Schrauben, Montageanleitung |
