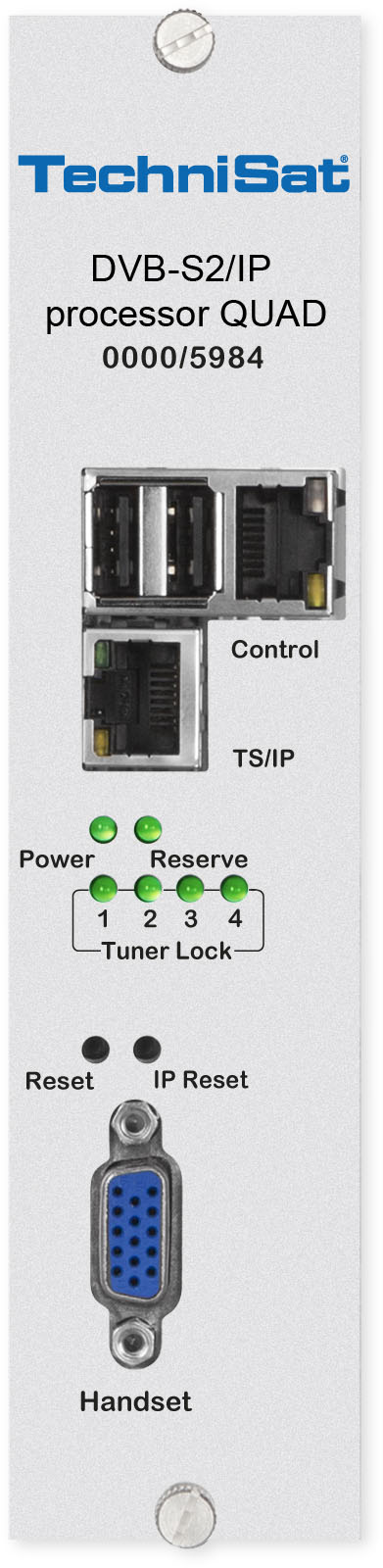

DVB-S2/IP PROCESSOR QUAD

DVB-S2/IP PROCESSOR QUAD

IPTV Aufbereitung DVB-S2, 4 Tuner
Colour EAN Item no. Weight (Box) Weight Device (W x H x D) Box
silver 4019588495005 0000/5984 806 g 538 g 41 x 4 x 14 cm 48 x 9 x 17 cm
Top Features
  • Quad tuner design for DVB-S2
  • IPTV- up to 128 channles with Multicast in the IP Net
  • SPTS or MTPS transmission up to 430 Mbit/s
  • 4 independent ASI outputs
  • Control and supervision by web interface or external handset
Tuner (DVB-S2)
DVB-S2 demodulator: EN 302 307
Demodulation: 8PSK, QPSK
Symbol rates: 2 ... 45
Roll off factor: 0,20; 0,25; 0,35
FEC Code rate (LDPC): 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
FEC block size: 64 kB
Outer coding (BCH): GF(2^16), t=8, 10, 12
Ambient operating conditions
Ambient temperature: 0 ... 45 °C
Humidity: 10 ... 90 %
ASI output
Interface: BNC female, 75 Ohm
Data rate: 100
Connections
Ethernet 10/100 (RJ-45): Yes Remote-Control
TSoIP output
Ethernet: RJ45 electrical
Format: 1000BaseT, IGMPv2, UDP/RTP, Unicast oder Multicast
Tuner DVB-S
DVB-S demodulator: EN 300 421
Demodulation: QPSK
Symbol rates: 5 ... 45
Roll off factor: 0,35
FEC code rate: 1/2, 2/4, 3/4, 5/6, 6/7, 7/8 (automatisch)
Interleaving: Convolutional; l=12
Outer coding: Reed Solomon 204, 188, T=8
Scope of Delivery
DVB-S2/IP PROCESSOR QUAD Karte, Frontblende, Rückblende
