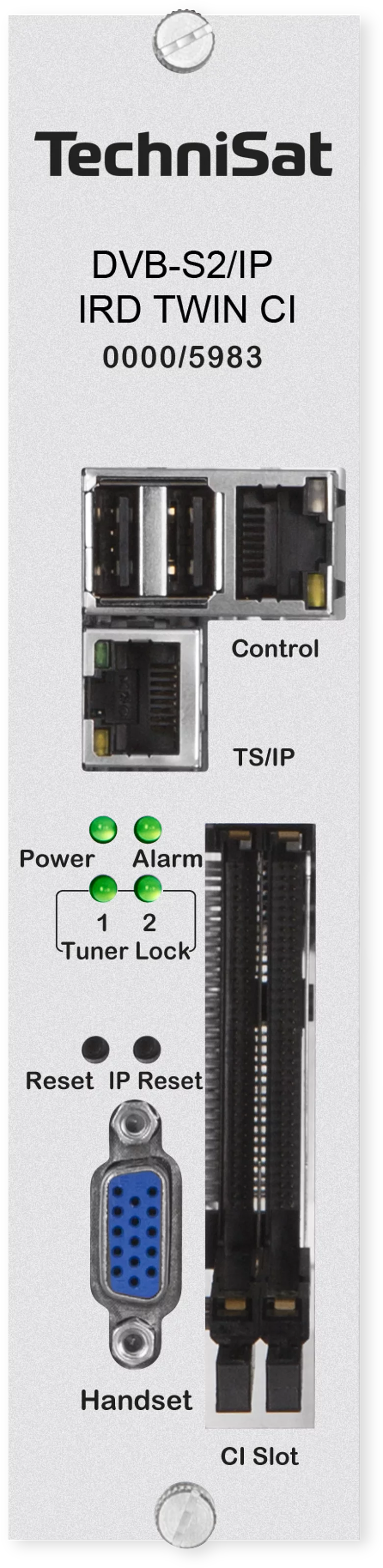

DVB-S2/IP IRD TWIN CI

DVB-S2/IP IRD TWIN CI

IPTV Aufbereitung DVB-S2, 2 Tuner
EAN Colour Item no. Weight (Box) Weight Device (W x H x D) Box
4019588839502 silver 0000/5983 832 g 548 g 41 x 4 x 14 cm 48 x 9 x 17 cm
Top Features
  • Twin tuner design for DVB-S2
  • IPTV- up to 32 channles with Multicast in the IP Net
  • SPTS or MTPS transmission up to 70 Mbit/s
  • 2 CI slots for direct decryption
  • MPEG-2, H.264, SD/HD Video decoding
  • 2 independent ASI outputs
  • Control and supervision by web interface or external handset
Tuner (DVB-S2)
DVB-S2 demodulator: EN 302 307
Demodulation: 8PSK, QPSK
Symbol rates: 2 ... 45
Roll off factor: 0,20; 0,25; 0,35
FEC Code rate (LDPC): 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
FEC block size: 64 kB
Outer coding (BCH): GF(2^16), t=8, 10, 12
Ambient operating conditions
Ambient temperature: 0 ... 45 °C
Humidity: 10 ... 90 %
ASI output
Interface: BNC female, 75 Ohm
Data rate: 100
AV output
Video decoder: MPEG-2 (MP@ML für SD, MP@HL für HD), MPEG-4/H.264 AVC hight profile level 4.1
Audio decoder: MPEG-1, MPEG-2
Video interface: BNC female, 75 Ohm
Audio interface: DB9-Buchse, L/R, 600 Ohm
Connections
HDMI™ (out): 1
Audio out analogue (RCA): Yes DB9, L/R, 600 Ohm
Ethernet 10/100 (RJ-45): Yes Remote-Control
TSoIP output
Ethernet: RJ45 electrical
Format: 100BaseT, IGMPv2, UDP/RTP, Unicast oder Multicast
Tuner DVB-S
DVB-S demodulator: EN 300 421
Demodulation: QPSK
Symbol rates: 5 ... 45
Roll off factor: 0,35
FEC code rate: 1/2, 2/4, 3/4, 5/6, 6/7, 7/8 (automatisch)
Interleaving: Convolutional; l=12
Outer coding: Reed Solomon 204, 188, T=8
Scope of Delivery
TechniNet DVB-S2/IP IRD TWIN CI Karte, Frontblende, Rückblende
