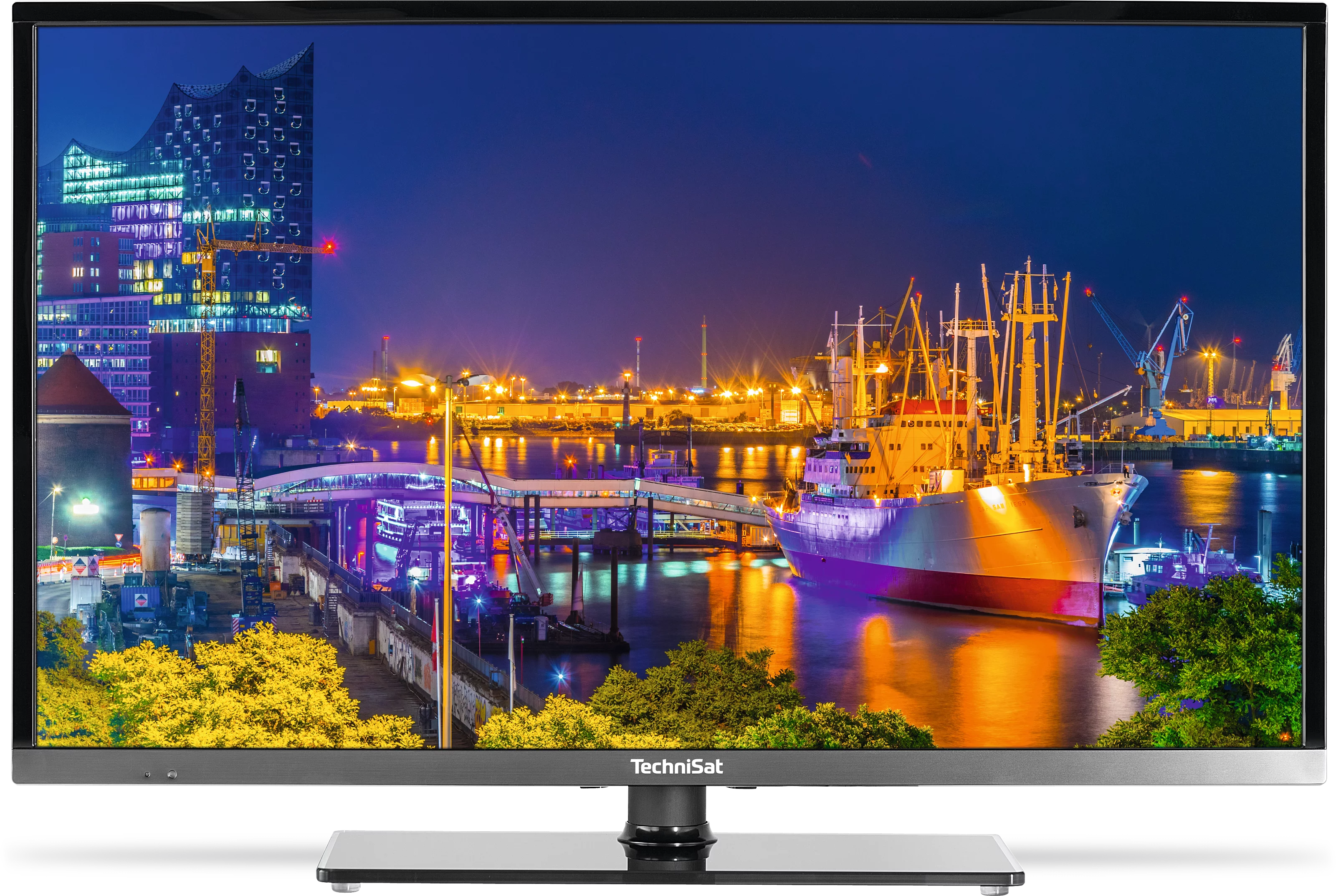

TECHNILINE PRO 32
Full HD Smart TV with single cable TwinTuner, DELUXE SOUND 2.1 and extensive Internet and networking features
| Colour | EAN | Item no. | Unit without stand (W x H x D) |
|---|---|---|---|
| black/titanium metallic | 4019588329768 | 5532/9716 | 73,5 x 44 x 8 cm |
| Top Features |
|---|
|
| TechniSat added value services |
|---|
| SFI+: Yes |
| ISI-Mode: Yes |
| TECHNIFAMILY: Yes |
| ISIPRO: Yes |
| AUTOINSTALL: Yes |
| TECHNIMATIC: Yes |
| Multimedia |
|---|
| DVR function: Ja |
| DVR storage medium: USB, NAS |
| Timeshift: Yes |
| Recordings edition function: Yes |
| Recordings folder management: Yes |
| Ambient operating conditions |
|---|
| Ambient temperature: 5 ... 35 °C |
| Humidity: 10 ... 75 % |
| LNB control |
|---|
| Vertical: 14 V |
| Horizontal: 18 V |
| Band switch: 22 kHz |
| Current consumption: max. 400 mA (kurzschlussfest) |
| DiSEqC: 1.0 / 1.2 / SCR1 = EN50494, SCR2 = EN50607 |
| Internet/Network |
|---|
| Internet: Yes |
| ISIO Internet: Yes |
| HbbTV: Yes |
| VoD services: Ja |
| Webbrowser: Yes |
| HTML 5 support: Yes |
| Internet speed test: Yes |
| Audio |
|---|
| HDMI ARC: Yes |
| Speakers: 2 x 2-way sound system |
| Connections |
|---|
| HDMI™ (in): 2 |
| USB: 2 (USB 2.0) |
| Common Interface Plus (CI+): Yes |
| Digital electric audio output (S/PDIF): Yes |
| Audio out analogue (RCA): Yes (3,5 mm Klinke) |
| Audio / video input analog (3.5 mm jack): 1 |
| Ethernet 10/100 (RJ-45): Yes |
| F socket: 1 |
| IEC-Connector: Yes |
| Headphone output: Yes (3,5 mm Klinke) |
| Decryption system |
|---|
| CI+: Yes |
| Dimensions / Weight |
|---|
| Stand height: 30 mm |
| Set depth without stand: 80 mm |
| Stand depth: 185 mm |
| Set width without stand: 735 mm |
| Weight without stand: 5,5 kg |
| Stand width: 385 mm |
| Set height without stand: 440 mm |
| Display |
|---|
| Type: FullHD eLED |
| Resolution (vertical and horizontal): 1920 x 1080 |
| Size (cm): 80 cm |
| Size (inches): 32 |
| SD: Yes |
| HD: Yes |
| 1080p: Yes |
| 1080i: Yes |
| 720p: Yes |
| 576p: Yes |
| 576i: Yes |
| 480p: Yes |
| 480i: Yes |
| Format: 16:9 |
| Zoom: Yes |
| Freeze frame: Yes |
| General characteristics |
|---|
| Appearance: Slim 55mm |
| Handling/comfort |
|---|
| Electronic Program Guide (EPG): Ja |
| Quick start: Yes |
| Parental Control: Ja |
| Media Player: Yes |
| Channel number mix: Yes |
| Teletext: Yes |
| Alarm: Yes |
| Autostandby: Yes |
| Sleep timer: Yes |
| Hotel mode: Yes |
| Clock: Yes |
| Hotel mode |
|---|
| Protected access to hotel mode: Yes |
| Customisable start screen: Yes |
| Energy card function: Yes |
| USB cloning function: Yes |
| Multimedia connectors: Yes |
| Lockable volume: Yes |
| Menu locking: Yes |
| Control panel lock: Yes |
| Radio mode: Yes |
| Alarm function: Yes |
| Sleep timer: Yes |
| Mixing of channel slots: Yes |
| Multicode remote control: Yes |
| Selectable start source: Yes |
| Selectable start channel: Yes |
| materials contained |
|---|
| Lead: Yes |
| Other features |
|---|
| OSD languages: English, German, French, Greek, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian |
| Regional channel selection: Yes |
| Power consumption |
|---|
| Energy class: A |
| In operation: 38 W |
| annual energy consumption when switched on: 55 kilowatt hour per annum |
| Standby: 0,5 W |
| Power switch: Yes |
| Contains no mercury: Yes |
| Power supply |
|---|
| Nominal voltage: 230 V |
| Frequency: 50 Hz |
| Mains adapter: internal |
| Streaming |
|---|
| DLNA Server: Yes |
| DLNA Client: Yes |
| Cloud store: Ja |
| Parental Control: Yes |
| TechniCast: Ja (optional über Dongle) |
| Supported formats & codecs |
|---|
| Video-Codecs: MPEG-2, MPEG-4, H.264 (bis H.264/AVC Level 4.2), H.265, DivX (MPEG4 part2), VC-1 |
| Video-Formats: M4V, MP4, MKV, MOV, MPG, TS, TS4, VOB, WMV, M2TS, AVI, ASF |
| Picture-Formats: BMP, JPEG, GIF, PNG, TIFF |
| Audio-Formats: WAV, MP3, AAC, FLAC, M4A, MP2, OGG, DDAC3, AIFF, WMA |
| TechniSat CONNECT |
|---|
| SFI: Yes |
| Tuner |
|---|
| Tuner type: Einkabel-TwinTuner |
| Twin-Tuner: Yes Einkabel-TwinTuner |
| DVB-S tuner: 2 |
| Single Cable Solution (SatCR): SCR1 = EN50494, SCR2 = EN50607 |
| DVB-C Tuner: 2 |
| Tuner DVB-T2: 2 |
| DVB-T Tuner: 2 |
| Analogue UHF/VHF/CATV tuner: 1 |
| Reception on: HDTV (MPEG-4), SD (MPEG-2) |
| Input impedance: 75 Ω |
| TECHNISELECT 12 ready: Yes |
| TECHNIROUTER ready: Yes |
| Tuner - Analogue |
|---|
| Reception range: 47 ... 862 MHz |
| Video standards: PAL B/G, D/K, L/L, I |
| Tuner - Cable |
|---|
| Reception range: 47 ... 862 MHz |
| Demodulation: 16-, 32-, 64-, 128-, 256-QAM |
| Symbol rate: 1,5 ... 7,2 |
| FEC: Reed-Solomon (204, 188) |
| Tuner - Sat |
|---|
| Reception range: 950 ... 2.150 MHz |
| DVB-S: QPSK |
| DVB-S: 2 ... 45 (MCPC / SCPC) |
| DVB-S2: 8PSK - QPSK |
| DVB-S2: 10 ... 31 (MCPC / SCPC) |
| FEC: RS, LDPC, BCH |
| Tuner - Terrestrial |
|---|
| Reception range 1: 174 ... 230 MHz |
| Reception range 2: 470 ... 862 MHz |
| Demodulation: COFDM (QPSK, 16-QAM, 64-QAM) |
| Transmission mode: 2k/8k |
| Bitrate: 4,98 ... 31,67 |
| FEC: 1/2, 2/3, 3/4, 5/6, 6/7, 7/8 |
| Voltage supply: 5 V |
| Power supply: 0,03 A |
| wall bracket |
|---|
| VESA wall mounting standards: VESA 200 x 100 |
| Scope of Delivery |
|---|
| TECHNILINE PRO Gerät, Glasdrehfuß, Fernbedienung (inkl. 2 AAA-Batterien), externer Subwoofer, CD mit Bedienungsanleitung, Audio-/Video-Adapterkabel Klinke/Cinch, Kurzanleitung mit Garantiehinweisen |
