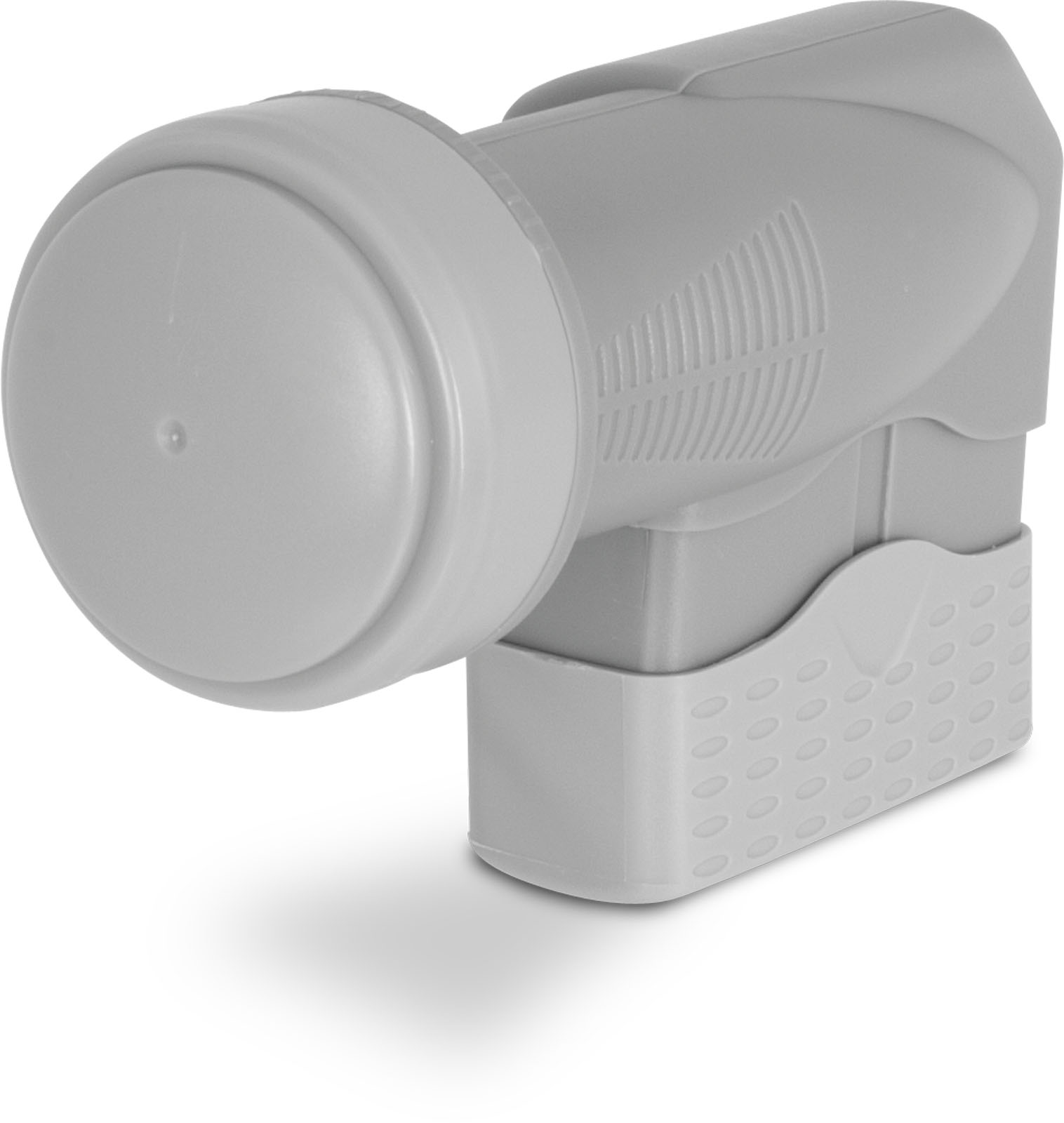

Eurotech Quad-LNB
Digital-LNB for four participants
| Colour |
EAN |
Item no. |
Weight |
| grey |
4019588179806 |
0001/7980 |
180 g |
| Local oscillator |
| Low band: 9,75 GHz |
| High band: 10,6 GHz |
| Accuracy: ± 1 MHz |
| Temperature drift: ± 2 MHz |
| Phase noise: -80 @10kHz |
| Filter-Navigation |
| Number participants: many (Technirouter required) |
| Number satellites: 1 |
| LNB control |
| Band switch: 22 kHz |
| Vertical: 10,5 ... 14 V |
| Horizontal: 16 ... 20 V |
| Ambient operating conditions |
| Humidity: 5 ... 100 % |
| Ambient temperature: -30 ... 70 °C |
| Input frequency range |
| Low band: 10,7 ... 11,7 GHz |
| High band: 11,7 ... 12,75 GHz |
| Noise factor |
| Lower frequency range: 0,7 dB max. |
| Upper frequency range: 0,7 dB max. |
| Noise figure: 0,3 dB |
| Output frequency range |
| Low band: 950 ... 1.950 MHz |
| High band: 1.100 ... 2.150 MHz |
| Power supply |
| LNB voltage supply: 10,5 ... 20 V |
| Power consumption: 130 mA (Typ.) |
| Prepared for |
| Number of clients: 4 |
| Number of orbit positions: 1 |
| Technical data |
| Outputs: 4 |
| Feed reception: ø 40 mm |
| Amplification: 60 dB |
| Connector type: F female |
| Impedance: 75 Ω |
| Scope of Delivery |
| Eurotech Quad-LNB |
