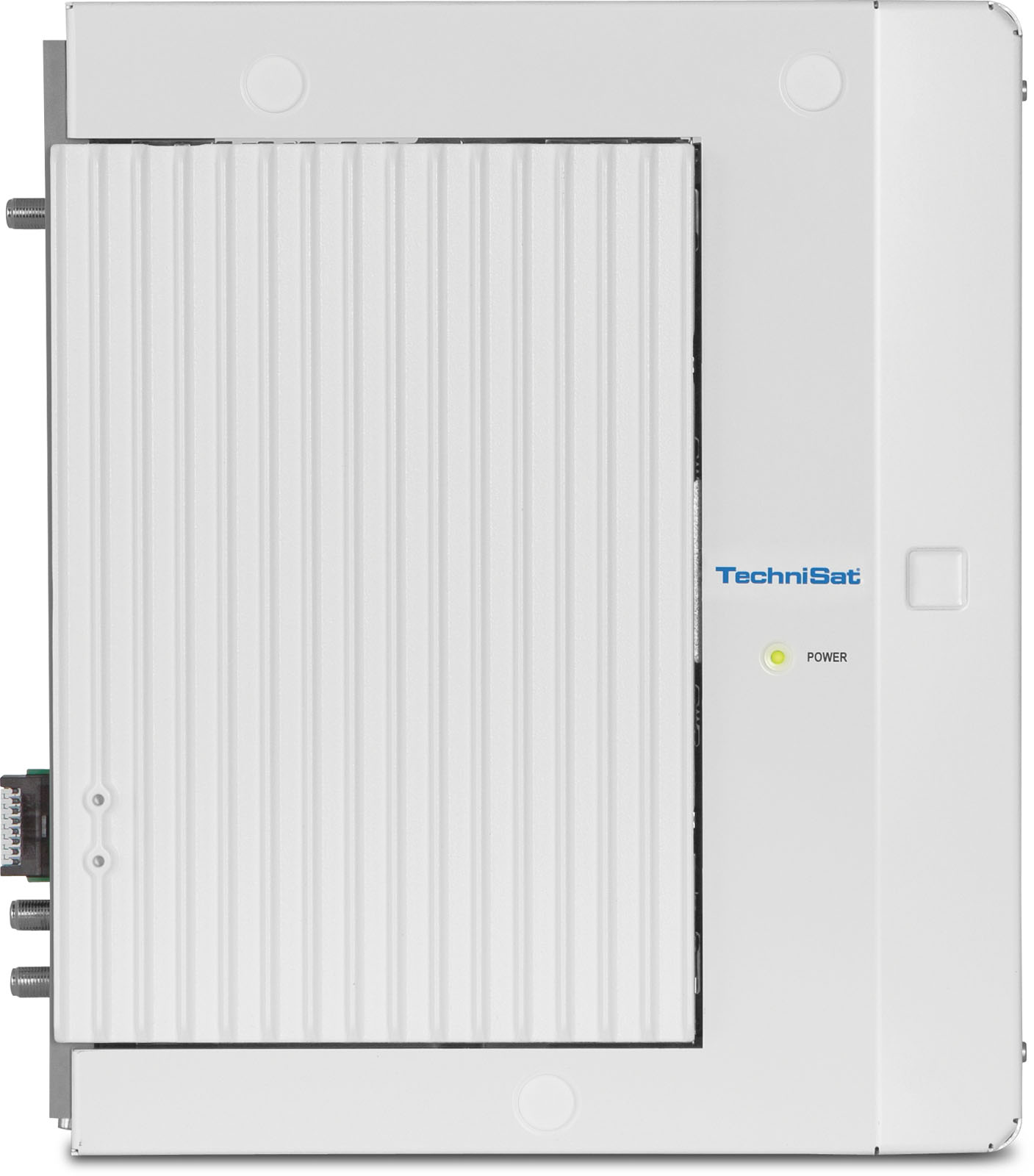

TECHNINET BS5 Light

TECHNINET BS5 Light

Digital 8-way Head-end - DVB-S(2) /DVB-C
Colour EAN Item no.
white 4019588059917 0000/5991
Top Features
  • Converts eight QPSK/8PSK-modulated DVB-S(2) signals into eight adjacent QAM-modulated DVB-C output signals
  • TV channels preprogrammed
  • Outstanding data through direct implementation as FPGA solution
  • High energy efficiency, power consumption: Typ. 25 W
  • Two SAT IF inputs A/B, adjustable independently of each other via the central controller
  • All the transmission parameters can be set with the TMS-BS5 management program
  • MPEG-transport stream prozessor
  • Fanless design for wall mounting (no noise)
Tuner (DVB-S2)
DVB-S2 demodulator: EN 302 307
Demodulation: 8PSK, QPSK
Symbol rates: 1 ... 34
Roll off factor: 0,35
FEC block size: 64 kB
FEC Code rate (LDPC): 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Outer coding (BCH): GF(2^16), t=8, 10, 12
Ambient operating conditions
Ambient temperature: 0 ... 40 °C
Humidity: 10 ... 75 %
DVB-C output
Modulation: 16-, 32-, 64-, 128-, 256-QAM
Symbol rate: 1,5 ... 7,15
MER: Typ. 45 dB
Reception range: 110 ... 862 MHz
Output level: 91
Secondary wave suppression: > 60 dB
Signal output: F socket
Output impedance: 75 Ω
Return loss: 14 dB @47 MHz (-1.5dB/Oct.)
Power consumption
In operation: Typ. 25 W
Power supply
Frequency: 50 Hz
Mains adapter: intern
Nominal voltage: 230 V
SAT IF input / Multiswitch
Reception range: 950 ... 2.150 MHz
input / output: F-socket
Impedance: 75 Ω
Input level: 60 ... 110
LNB voltage supply: 0 V
Tuner DVB-S
DVB-S demodulator: EN 300 421
Demodulation: QPSK
Symbol rates: 2 ... 45
Roll off factor: 0,35
FEC code rate: 1/2, 2/4, 3/4, 5/6, 6/7, 7/8
Interleaving: Convolutional; l=12
Outer coding: Reed Solomon 204, 188, T=8
Scope of Delivery
TechniNet BS5 Light, power cord, instalation manualm, drilling template
