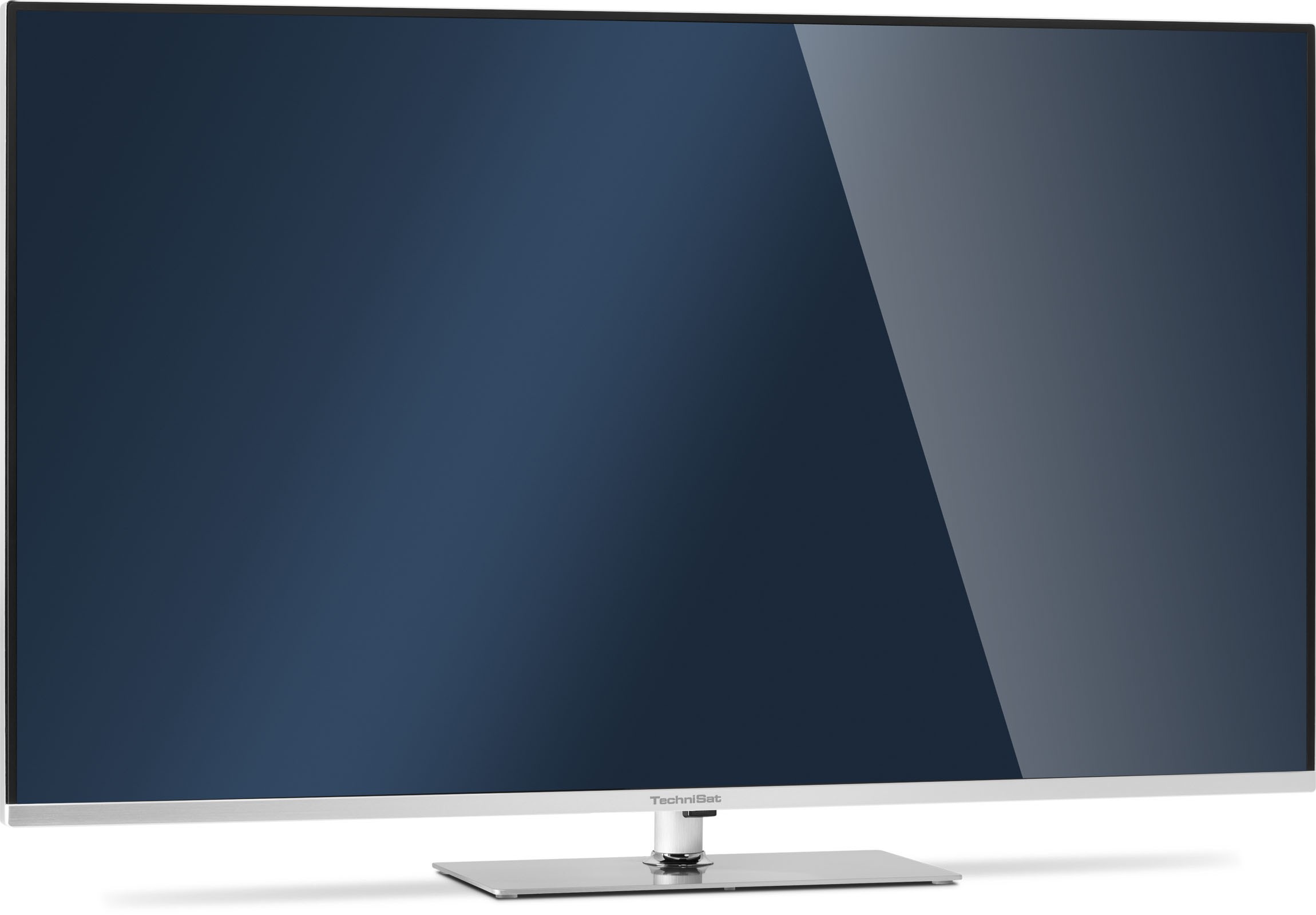

TECHNIMEDIA UHD 55
UHD/4K smart TV with triple TwinTuner
| Weight without stand | EAN | Colour | Item no. | Weight (Box) | Weight | Unit without stand (W x H x D) | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|---|---|
| 18 kg | 4019588559615 | silver metallic/black | 5555/9610 | 28 kg | 24 kg | 1.235 x 715 x 70 mm | 123,5 x 76 x 22,5 cm | 140,5 x 94 x 20 cm |
| 18 kg | 4019588559660 | titanium metallic/black | 5555/9616 | 28 kg | 24 kg | 1.235 x 715 x 70 mm | 123,5 x 76 x 22,5 cm | 140,5 x 94 x 20 cm |
| Top Features |
|---|
|
| TechniSat added value services |
|---|
| SFI+: Yes |
| ISI-Mode: Yes |
| TECHNIFAMILY: Yes |
| ISIPRO: Yes |
| AUTOINSTALL: Yes |
| TECHNIMATIC: Yes |
| Multimedia |
|---|
| DVR function: Ja |
| DVR storage medium: USB, NAS |
| Timeshift: Yes |
| Recordings edition function: Yes |
| Recordings folder management: Yes |
| Ambient operating conditions |
|---|
| Ambient temperature: 5 ... 35 °C |
| Humidity: 10 ... 75 % |
| LNB control |
|---|
| Vertical: 14 V |
| Horizontal: 18 V |
| Band switch: 22 kHz |
| Current consumption: max. 400 mA (kurzschlussfest) |
| DiSEqC: 1.0 / 1.2 / SCR1 = EN50494, SCR2 = EN50607 |
| Internet/Network |
|---|
| Internet: Yes |
| ISIO Internet: Yes |
| HbbTV: Yes |
| VoD services: Ja |
| Webbrowser: Yes |
| HTML 5 support: Yes |
| Internet speed test: Yes |
| Audio |
|---|
| HDMI ARC: Yes |
| Speakers: 2 x 2-way sound system |
| Connections |
|---|
| HDMI™ (in): 3 (4K 50/60p / HDCP 2.2) |
| USB: 2 (USB 3.0) |
| Common Interface Plus (CI+): Yes |
| Smartcard reader: Yes |
| Digital optical audio out: Yes |
| Scart: 1 (via Mini-Scart-Adapter) |
| Ethernet 1Gbit/s (RJ-45): 1 |
| F socket: 2 |
| IEC-Connector: Yes |
| Audio out analogue (3,5 mm jack): 1 |
| Headphone output: Yes (3,5mm Klinke) |
| Decryption system |
|---|
| Nagravision: Yes |
| CI+: Yes |
| Dimensions / Weight |
|---|
| Stand height: 50 mm |
| Set depth without stand: 80 mm |
| Set width without stand: 1.235 mm |
| Set height without stand: 715 mm |
| Weight without stand: 20 kg |
| Stand depth: 225 mm |
| Stand width: 445 mm |
| Display |
|---|
| Size (cm): 140 cm |
| Format: 16:9 |
| Picture in Picture (PIP): Yes (2x SD, 2x HD, 1x UHD u. 1x HD, 1x UHD u. 1x SD, 1x SD u. 1x HD) |
| Angle of view: 178° / 178° |
| Picture and Picture (PAP): Yes (2x SD, 2x HD, 1x UHD u. 1x HD, 1x UHD u. 1x SD, 1x SD u. 1x HD) |
| Freeze frame: Yes |
| Zoom: Yes |
| UHD/4K upscaling: Yes |
| SD: Yes |
| HD: Yes |
| UHD: Yes |
| 2160p: Yes |
| 1080p: Yes |
| 720p: Yes |
| Resolution (vertical and horizontal): 3840 x 2160 |
| Size (inches): 55 |
| Type: UHD eLED |
| General characteristics |
|---|
| Appearance: Slim 55mm |
| Handling/comfort |
|---|
| Smart Home central unit: Yes für Smart Functions, nur in Verbindung mit Z-Wave Stick 1, (Art.-Nr. 0000/9536) |
| Smart Home client: Yes |
| Electronic Program Guide (EPG): Ja |
| Quick start: Yes |
| Parental Control: Ja |
| Media Player: Yes |
| Channel number mix: Yes |
| Teletext: Yes |
| Alarm: Yes |
| Autostandby: Yes |
| Sleep timer: Yes |
| Hotel mode: Yes |
| Clock: Yes |
| Hotel mode |
|---|
| Protected access to hotel mode: Yes |
| Customisable start screen: Yes |
| Energy card function: Yes |
| USB cloning function: Yes |
| Multimedia connectors: Yes |
| Lockable volume: Yes |
| Menu locking: Yes |
| Control panel lock: Yes |
| Radio mode: Yes |
| Alarm function: Yes |
| Sleep timer: Yes |
| Mixing of channel slots: Yes |
| Multicode remote control: Yes |
| Selectable start source: Yes |
| Selectable start channel: Yes |
| materials contained |
|---|
| Lead: Yes |
| Other features |
|---|
| OSD languages: English, German, French, Greek, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian |
| Total programme memory: 9.999 |
| Regional channel selection: Yes |
| Power consumption |
|---|
| SFIplus updating: 28 W |
| Energy class: A+ |
| Software update: 28 W |
| Standby fast start: 28 W |
| In operation: 81 W |
| annual energy consumption when switched on: 118 kilowatt hour per annum |
| Standby: 0,48 W |
| Off status: 0 W |
| Power switch: Yes |
| Contains no mercury: Yes |
| Power supply |
|---|
| Nominal voltage: 230 V |
| Frequency: 50 Hz |
| Mains adapter: internal |
| Ready for reception |
|---|
| HD+: Yes |
| Supported formats & codecs |
|---|
| Video-Codecs: MPEG-2, MPEG-4, H.264 (bis H.264/AVC Level 4.2), DivX, VC-1, H.265 |
| Video-Formats: M4V, MP4, MKV, MOV, MPG, TS, TS4, VOB, WMV, Xvid, M2V, M2TS, AVI, ASF |
| Picture-Formats: BMP, JPEG, GIF, PNG, TIFF |
| Audio-Formats: WAV, MP3, AAC, FLAC, M4A, MP2, OGG, DDAC3, WMA |
| TechniSat CONNECT |
|---|
| SFI: Yes |
| Tuner |
|---|
| Tuner type: 3xTwin-Tuner |
| DVB-S tuner: 2 |
| DVB-C Tuner: 2 |
| Tuner DVB-T2: DVB-T2/HEVC (H265) |
| Analogue UHF/VHF/CATV tuner: 1 |
| Reception on: UHD ( H.265/HEVC), HDTV (MPEG-4), SD (MPEG-2) |
| Input impedance: 75 Ω |
| TECHNIROUTER ready: Yes |
| TECHNISELECT 12 ready: Yes |
| Tuner - Analogue |
|---|
| Reception range: 47 ... 862 MHz |
| Video standards: PAL B/G, D/K, L/L, I |
| Tuner - Cable |
|---|
| Reception range: 47 ... 862 MHz |
| Demodulation: 16-, 32-, 64-, 128-, 256-QAM |
| Symbol rate: 1,5 ... 7,2 |
| FEC: Reed-Solomon (204, 188) |
| Tuner - Sat |
|---|
| Reception range: 950 ... 2.150 MHz |
| DVB-S: QPSK |
| DVB-S: 2 ... 45 (MCPC / SCPC) |
| DVB-S2: 8PSK - QPSK |
| DVB-S2: 10 ... 31 (MCPC / SCPC) |
| FEC: RS, LDPC, BCH |
| Tuner - Terrestrial |
|---|
| Reception range 1: 174 ... 230 MHz |
| Reception range 2: 470 ... 862 MHz |
| Demodulation: COFDM (QPSK, 16-QAM, 64-QAM) |
| Transmission mode: 2k/8k |
| Bitrate: 4,98 ... 31,67 |
| FEC: 1/2, 2/3, 3/4, 5/6, 6/7, 7/8 |
| Voltage supply: 5 V |
| Power supply: 0,03 A |
| wall bracket |
|---|
| VESA wall mounting standards: VESA 400 x 400 |
| Scope of Delivery |
|---|
| TECHNIMEDIAUHD, rotating metal foot, remote control including 2 AAA batteries, SCART adapter, 4 x 3D glasses (polarized), external Subwoofer, CD with manual, short manual with warranty information |
