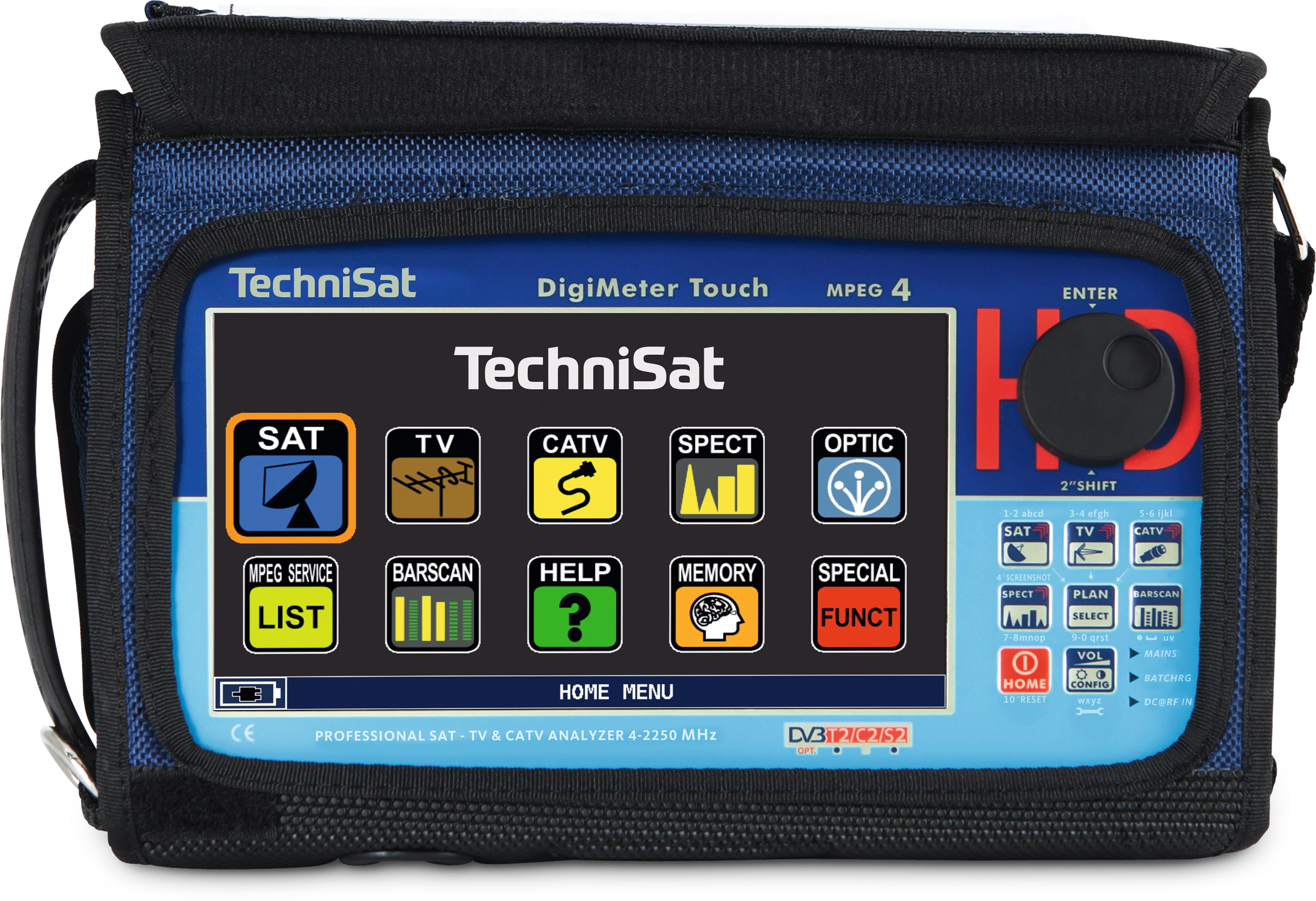

DIGIMETER TOUCH
Professioneller Messempfänger für DVB-T2-, DVB-C-, DVB-S2- und DAB+ Messung
| EAN | Colour | Item no. | Weight (Box) | Weight | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|
| 4019588034327 | blue | 0000/3432 | 2,3 kg | 995 g | 24 x 17 x 5 cm | 36 x 9 x 27 cm |
| Top Features |
|---|
|
| Ambient operating conditions |
|---|
| Ambient temperature: -10 ... 50 °C |
| Humidity: 10 ... 90 % |
| Display |
|---|
| Type: TFT-Farb-Touchdisplay (7", 16:9) |
| Frequency range |
|---|
| TV digital & analogue - Radio FM: 4 ... 930 MHz |
| Digital & analogue satellite: 930 ... 2.600 MHz |
| Memory schema: bis zu 99 Pläne |
| Programmes: 199 Programme je Plan |
| General characteristics |
|---|
| Input impedance: 75 Ω |
| Replaceable input jack: F, IEC, BNC |
| RF input protection: max. 60 V AC |
| RF level: 30 ... 125 dBµV |
| Measurement result indication: PEGEL/POWER niedrig/hoch |
| File Manager: zur Organisation des Programm- und Messdatenspeichers |
| ENCODER/dial: Ja |
| LNB stream measurement: 0 ... 500 mA |
| Measurements display / classification: 0,1 dB (Pegel und Power) |
| Unit of measurement: dBµV/dBm (wählbar) |
| RBW @ -3dB: 100 kHz (FM), 130 kHz (TV), 4 MHz (SAT) |
| Accuracy of measurement: typ. 1,5 dB SAT; 1 dB TV |
| Measurement stability dB/°C (-10°C - 50°C): 0,03 (TV); 0,1 (SAT) |
| Automatic power off via timer: 5 min (Ein/Aus) |
| Voltage supply: DC 12 V / 1 A |
| Audio: Lautsprecher (0,5 W) (regelbare Lautstärke) |
| Sound/buzzer: für Qualität oder Pegel-Indikation (wählbar) |
| Interface: USB 2.0 |
| Audio/Video input/output: HDMI-Ausgang |
| Low battery alarm: Akustisch und über Symbol im Display |
| Measurement DVB-S2 |
|---|
| MPEG-2 and MPEG-4 HD: Ja |
| NET. ID: ONID, NID, NIT, TSID, PMT, LCN, VPid, APid, orbit position |
| FEC (auto. recognition): 1/2, 2/3, 3/4, 4/5, 5/6, 6/7, 7/8, 8/9 |
| Measurement DVB-T |
|---|
| Offset frequency: 166 kHz |
| MER and BER measurement tolerances: 1 dB typ. (2 dB Max.) |
| MER measurement: ≤ 38 dB |
| BER: bBER bis zu 1x10E-5; aBER bis zu 2x10E-8 |
| Automatic recognition and display: Constellation, Guard Interval, FEC |
| Constellation: COFDM / QPSK, 16-QAM, 64-QAM, 256-QAM |
| Guard interval: 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128 |
| FEC: 1/2, 2/3, 3/4, 5/6, 7/8 |
| Spectrum inverted: automatisch |
| Automatic quality analysis: FAIL - MARGIN - PASS |
| Noise Margin / Signal Reserve and SNR accuracy of measurement: 1 dB |
| Measurement SAT |
|---|
| Satellite spectrum analysis: DVB-S, DVB-S2 |
| Reception range: 930 ... 2.600 MHz |
| DiSEqC "a-b-c-d": vorprogrammiert und einfach zu nutzen. Zur Ansteuerung aller LNBs (Single- und Dual-Feed) und Multischalter |
| RF voltage: 5 - 13 - 18 - 24 V |
| S.C.R: EN 50494 & EN 50607 |
| LNB LO frequency: 0 ... 20.000 MHz |
| SPAN: 10, 20, 50, 100, 200, 500, FULL SAT, Satexpert |
| Filter measurement bandwidth: 1 MHz und 5 MHz @ -3 dB |
| db / div: 1, 2, 5, 10 |
| Reference level: 0 ... 130 |
| Other configurable spectrum parameters / functions: MAX HOLD (peak memory) / freeze MAX Value, SAT POINTING ideal Parameter-settings for the oreintation of an SAT-antenna |
| MRK measurement illustration: 0,1 dB |
| Dynamic range display: > 30 dB |
| Noise Margin / Signal Reserve and SNR accuracy of measurement: 1 dB |
| Symbol rate: 2 ... 45 |
| Measurement TV analog |
|---|
| Multi standard: PAL(M-N-B-G-I-D-K), NTSC M, SECAM L |
| Frequency range: 44 ... 870 MHz |
| RF level measurement range: 5 ... 125 |
| Measurements display: 0,1 dB |
| A/V (audio/video) ratio accuracy: 1,5 dB Typ. |
| Measurement TV Terrestrial |
|---|
| TV spectrum analyser: DVB-T, DVB-T2, DVB-C, Analog TV, DAB+* |
| Frequency range: 4 ... 930 MHz |
| Reception range: 4 ... 65 MHz |
| SPAN TV band (spread): 1, 2, 5, 7, 10, 20, 50, 100, 200, 500, FULL, VHF, UHF, 4/66 |
| db / div: 5, 10 |
| Dynamic range: 60 dB |
| Measurements display: 0,1 dB |
| Filter measurement bandwidth: TV 130 @ -3 dB |
| Reference level: 0 ... 130 |
| Automatic power / level position marker: für Digital-Signale im Zentrum des Trägers; für analoge Signale auf dem Video-Träger |
| Other configurable spectrum parameters / functions: MAX HOLD (max. Wert einfrieren) |
| INGRESS spectrum: 4 ... 66 MHz |
| Leakage / interference radiation measurement: Antenne und Entfernungsparameter einstellbar |
| Measuring DVB-C |
|---|
| Demodulated QAM signals: DVB-C (Annex A, B, C), Downstream DOCSIS |
| Symbol rate: 2.000 ... 9.000 |
| Constellation diagram display: 16-, 32-, 64-, 128-, 256-QAM |
| MER measurement: 64-QAM > 36dB; 128-QAM > 38dB; 256-QAM > 40dB |
| BER measurement: bis zu 1 x 10E-9 |
| Spectrum inverted: automatisch |
| Multiplex flatness: 0,7 dB typ. |
| Automatic quality analysis: FAIL - MARGIN - PASS |
| Noise Margin / Signal Reserve and SNR accuracy of measurement: 1 dB |
| C/N measurement tolerance: 60 dB im Spectrum typ. |
| Power supply |
|---|
| Nominal voltage: AC 110 ... 240 V |
| Frequency: 50 ... 60 Hz |
| Mains adapter: extern (Steckernetzteil) |
| Rechargeable battery: Li-Ion 7,4 V / 4,3 Ah |
| Battery life: bis zu 4 Std. @ 25°C |
| Battery charging time: 2 Std. (um 50 % Kapazität zu erreichen) |
| Scope of Delivery |
|---|
| DIGIMETER TOUCH, Tragetasche mit Trageriemen, Ladegerät/Netzteil, USB-Kabel, Adapterstecker |
