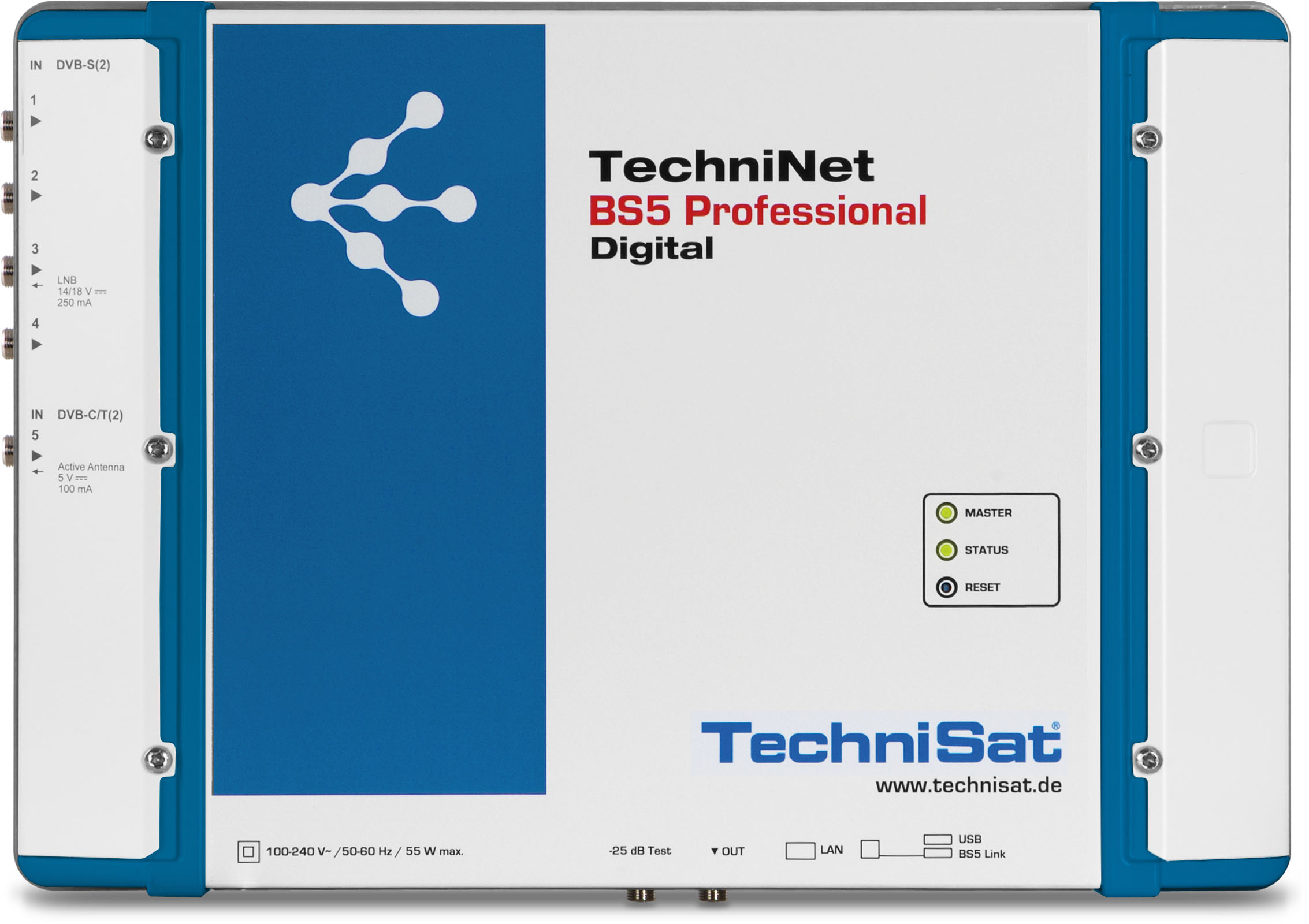

TECHNINET BS5 Professional

TECHNINET BS5 Professional

Digital Multi-standard 8-way Head-end
Colour EAN Item no. Weight (Box) Weight Device (W x H x D) Box
blue/white 4019588059900 0000/5990 5,56 kg 3,95 kg 36 x 10 x 25 cm 49 x 14 x 34 cm
Top Features
  • Stand-alone head-end with 8-way multi-standard frontend DVB S(2)/-T(2)/-C, 6-way decoding (CI) and 8 output channels conforming to DVB-C (flexibly configurable)
  • Outstanding output values due to direct implementation as FPGA solution
  • 4 Sat-IF inputs with DiSEqC 1.0 functionality for sat multiswitches and 1 terr./cable input, flexibly distributable across 8 multi-standard frontends
  • Power supply for LNB and active antennas
  • All transmission parameters can be set using the TMS-BS5 configuration software
  • Remote maintenance and configuration via PC software TMS-BS5
  • Comprehensive baseband signal processing with channel filter functionality such as NIT, LCN
  • High level of energy efficiency
  • No fan, therefore no noise and no maintenance
  • Cascade capability for two head-ends - 16 DVB-C output channels
Tuner (DVB-S2)
DVB-S2 demodulator: EN 302 307
Demodulation: 8PSK, QPSK
Symbol rates: 1 ... 45
Roll off factor: 0,35
FEC block size: 64 kB
FEC Code rate (LDPC): 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Outer coding (BCH): GF(2^16), t=8, 10, 12
Ambient operating conditions
Humidity: 10 ... 75 %
Ambient temperature: 0 ... 45 °C
LNB control
Vertical: 14 V
Horizontal: 18 V
Band switch: 22 kHz
Current consumption: max. 250 mA (at F-socket no. 3)
DiSEqC: 1 (sat. pos. (A/B/C/D))
Configuration, monitoring
Network interface: RJ45, Ethernet, 100BaseT, TCP/IP
Decryption system
CI: 6x Yes
DVB-C output
Modulation: 16-, 32-, 64-, 128-, 256-QAM
Symbol rate: 2,25 ... 7,2
MER: Typ. 45 dB (256-QAM, with equaliser)
Reception range: 47 ... 862 MHz
Output level: 110 @862 MHz, adjustable
Secondary wave suppression: > 60 dB
Signal output: F socket
Output impedance: 75 Ω
Return loss: 14 dB @47 MHz (-1.5dB/Oct.)
Power consumption
In operation: 28 W
Power supply
Frequency: 50 Hz
Nominal voltage: 230 V
Mains adapter: *Unnamed (Identifier: netzteil_intern)
SAT IF input / Multiswitch
Reception range: 950 ... 2.150 MHz
input / output: F-socket
Impedance: 75 Ω
Input level: 60 ... 100
LNB voltage supply: 14 / 18 V & 22kHz
LNB power supply: Max. 250 mA at input 3
Tuner DVB-C
input: F female
Impedance: 75 Ω
Reception range: 48 ... 862 MHz
Symbol rates: 1 ... 7,2
Modulation: 16-, 32-,64-, 128-, 256-QAM
Nyquist roll-off: 0,15
FEC coding: 204, 188
Tuner DVB-S
DVB-S demodulator: EN 300 421
Demodulation: QPSK
Symbol rates: 1 ... 45
Roll off factor: 0,35
FEC code rate: 1/2, 2/4, 3/4, 5/6, 6/7, 7/8
Interleaving: Convolutional; l=12
Outer coding: Reed Solomon 204, 188, T=8
Tuner DVB-T
input: F female
Impedance: 75 Ω
Reception range: 50,5 ... 858 MHz
Modulation: QPSK, 16-QAM, 64-QAM
Channel bandwidth: 6, 7, 8 MHz
FFT mode: 2k, 8k
Guard interval: 1/4, 1/8, 1/16, 1/32
FEC: 1/2, 2/3, 3/4, 5/6, 7/8
Tuner DVB-T2
input: F-Buchse
Impedance: 75 Ω
Reception range: 50,5 ... 858 MHz
Modulation: QPSK, 16-QAM, 64-QAM, 256-QAM
Channel bandwidth: 1,7 / 5 / 6 / 7 / 8 MHz
FFT mode: 1k, 2k, 4k, 8k, 16k, 32k
Guard interval: 1/128, 1/32, 1/16, 19/256, 1/8, 19/128, 1/4
FEC: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Scope of Delivery
TechniNet BS5 Professional, Wandhalter, Montageanleitung, Lizenztexte
