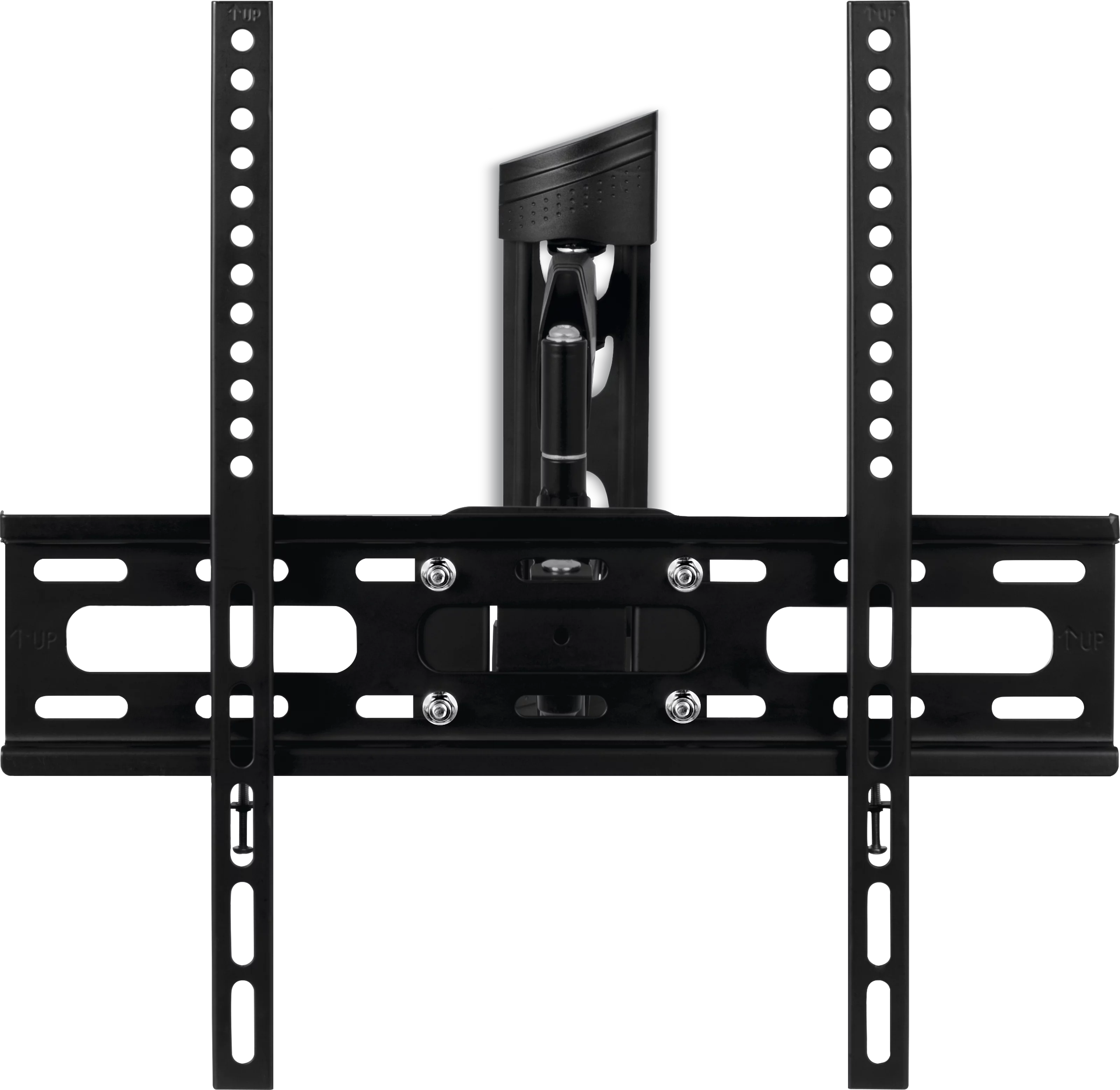

TECHNIMOUNT FLEX EASY

TECHNIMOUNT FLEX EASY

Full-motion TV wall bracket with articulated arm
Colour Distance from wall EAN Item no. Weight (Box) Weight Device (W x H x D) Box
black 62 mm 4019588227651 2020/2765 3,96 kg 3,13 kg 43 x 44 x 7,2 cm 51 x 31,5 x 7 cm
Top Features
  • Hole distance: VESA 100, 200, 400, 200 x 400
  • Weight capacity: max. 25 kg
  • Distance to the wall: 62 mm ... 426 mm
  • Tilt angle: -2° ... 12°
  • Swivel angle: ± 90° (depending on TV size)
  • attached bubble level for the horizontal adjustment
  • integrated cable routing in the articulated cantilever
  • Color: black
Filter-Navigation
Load capacity: 25 kg
General characteristics
Hole distance: VESA 100, 200, 400, 200 x 400
Load carrying capacity: max. 25 kg
Distance from wall: 62 ... 426 mm
Screen inclination: -2 ... 12 °
Recommended TV size: 32 ... 55 in
Integrated level: Yes (Bubble level)
Compatible with: TECHNIMEDIA, TECHNIPLUS ISIO, TECHNILINE, TECHNISMART
Colour: black
Scope of Delivery
TECHNIMOUNT FLEX EASY, mounting accessories, installation manual
