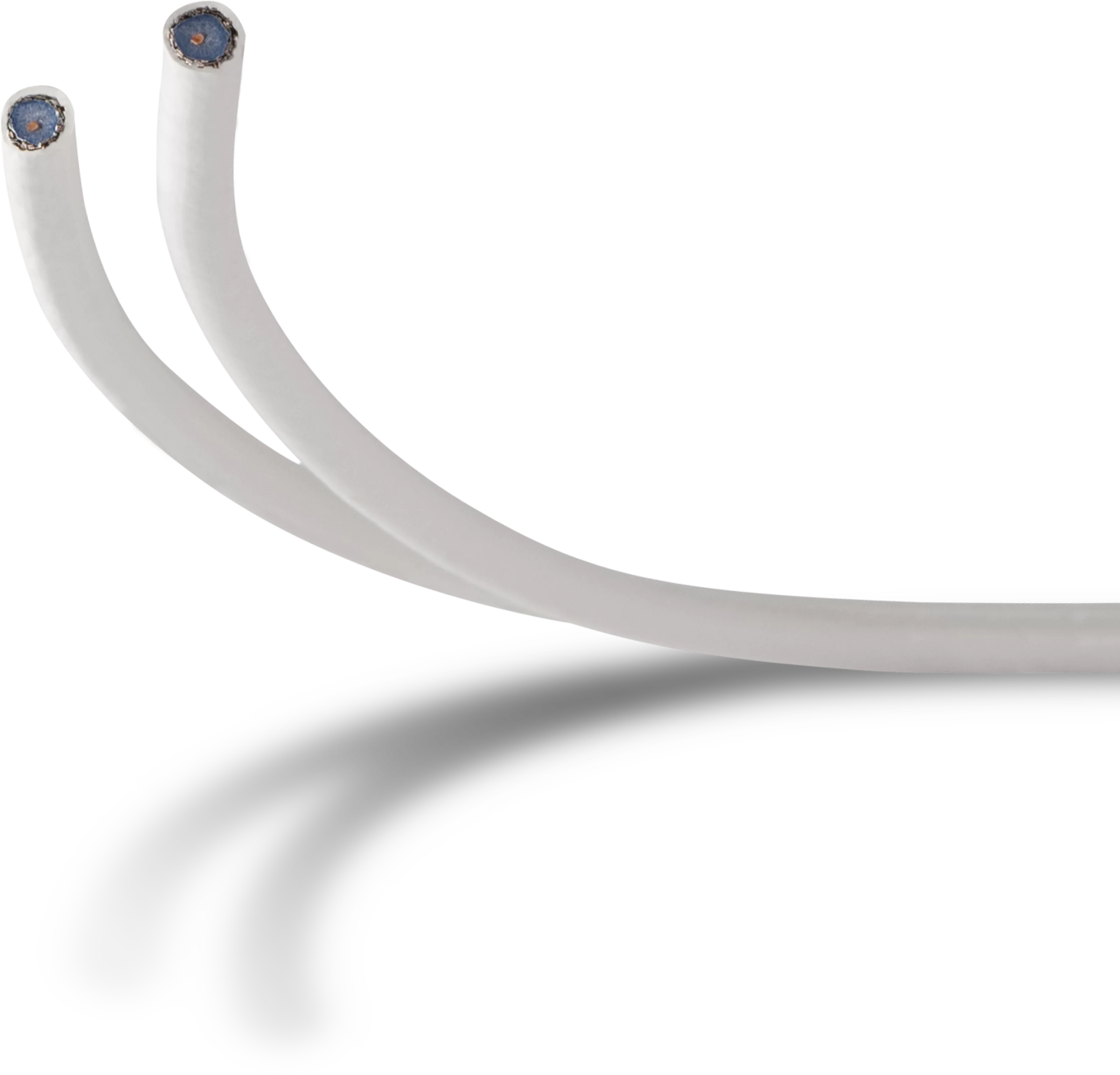

COAXSAT 115-2x3.6
Quadruple screened 0.8/3.6 Twin-coaxial cable for satellite and CATV
| EAN | Colour | Item no. | Weight (Box) | Weight | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|
| 4019588330221 | white | 0003/3022 | 7,5 kg | 6,46 kg | 27,5 x 27,5 x 15 cm | 55 x 45 x 40 cm |
| Top Features |
|---|
|
| Attenuation |
|---|
| 5 MHz: 2,45 |
| 10 MHz: 3,34 |
| 25 MHz: 5,05 |
| 45 MHz: 6,57 |
| 100 MHz: 7,2 |
| 200 MHz: 11,8 |
| 300 MHz: 13,9 |
| 450 MHz: 17,8 |
| 800 MHz: 24,6 |
| 1000 MHz: 28,7 |
| 1350 MHz: 33,2 |
| 1750 MHz: 38,6 |
| 2050 MHz: 42,9 |
| 2250 MHz: 45,3 |
| Return loss |
|---|
| 5 - 30 MHz: ≥ 21 dB |
| 30 - 65 MHz: ≥ 33 dB |
| 65 - 470 MHz: ≥ 27 dB |
| 470 - 1800 MHz: ≥ 26 dB |
| 1800 - 2450MHz: ≥ 26 dB |
| Technical data |
|---|
| Frequency range: 5 ... 3.000 MHz |
| Impedance: 75 Ω (± 3) |
| Inner cable diameter: 0,8 mm |
| Inner cable material: Copper bare (OFC) |
| Isolation: Zell-PE |
| Diameter dielectric: 3,6 mm (± 0,1) |
| Outer cable: 1x Alu-Folie doppelt kaschiert und geklebt, 2x Cu-Geflecht Sn 16 x 3 x 0.13 mm, 1x Alu-Folie doppelt kaschiert |
| Sheath: PVC, withe |
| Diameter with coating: 5,6 x 11 mm (± 0,2) |
| Bending radius: ≥ 50 mm |
| Coupling resistance: ≤ 0,5 @ 5 MHz |
| Capacity: 55 pF /m |
| Shrinkage factor: 0,85 |
| Shielding factor: ≥ 115 dB ≙ Klasse A+ |
| Transfer impedance |
|---|
| 5MHz: ≤ 0,5 |
| 30 MHz: ≤ 0,05 |
| Scope of Delivery |
|---|
| 80m ring |
