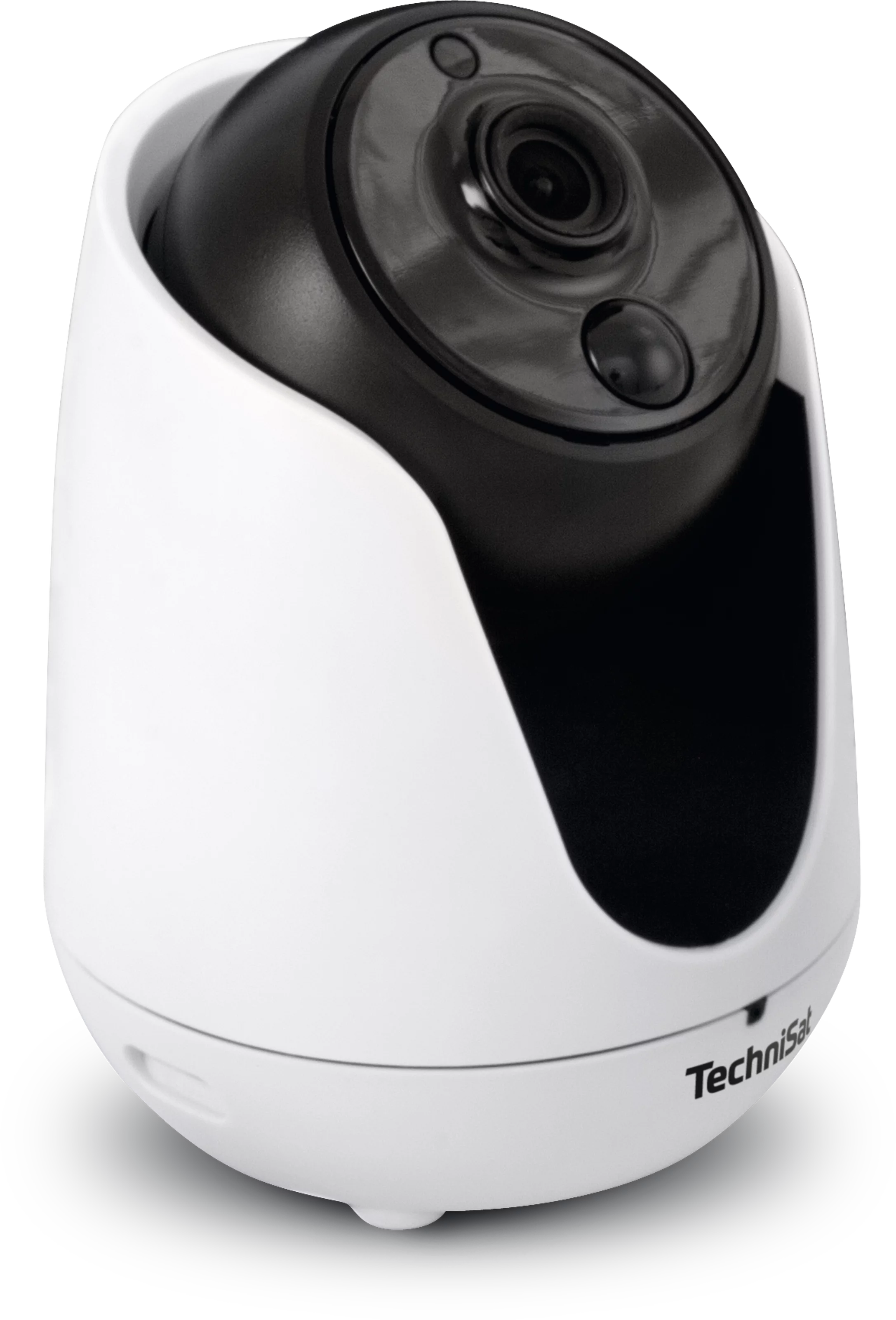

Indoor Camera 1
Indoor IP camera (Full HD) with night vision function
| Colour |
EAN |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| white/black |
4019588095120 |
0000/9512 |
498 g |
270 g |
12,5 x 9 x 9 cm |
16 x 17,5 x 9,5 cm |
| Top Features |
- Full HD indoor IP camera with night vision function and 100° viewing angle
- The smart home camera can be rotated horizontally by 355° and vertically by 120° via app or TV remote control
- Microphone and speaker are permanently integrated; the night vision range extends up to 8 meters
- Z-Wave camera for TechniSat's SmartHome ecosystem. Device dimensions (WxHxD): 12.50 x 9 x 9 cm
|
| sonstiges |
| bf_filter_anschluesse: Wi-Fi |
| WLAN |
| IEEE 802.11g: Yes |
| IEEE 802.11b: Yes |
| WPA2: Yes |
| 2,4 GHz: Yes |
| WPA: Yes |
| WEP: Yes |
| IEEE 802.11n: Yes |
| Ambient operating conditions |
| Ambient temperature: -10 ... 55 °C |
| Humidity: 10 ... 80 % |
| IP class: 20 |
| Camera |
| Sensor: RGB CMOS |
| Resolution: 2 |
| Light sensitivity: 0 lx |
| Connections |
| microSD card: 1 |
| Ethernet 10/100 (RJ-45): Yes |
| DC IN: 1 (5 V) |
| Floodlight |
| Typ: IR LED |
| wavelength: 850 nm |
| Quantity: 1 piece |
| Range: 8 m |
| Mode: Auto/Manuell |
| Network & communication |
| TCP/IP: Yes |
| HTTP: Yes |
| HTTPS: Yes |
| RTPS: Yes |
| UPnP: Yes |
| IPv4: Yes |
| 100Base-T: Yes |
| UDP: Yes |
| DDNS: Yes |
| 10Base-T: Yes |
| SMPT: Yes |
| DHCP: Yes |
| FPT: Yes |
| Objectiv |
| Typ: M12 interface |
| Focal length: 2,8 mm |
| Angle of view h/d: 95°/110° ° |
| Pan: 350 ° |
| Tilt: 120 ° |
| Aperture: F2,4 |
| Power consumption |
| In operation: 4,2 W |
| Power supply |
| Mains adapter: external DC 5V/2A |
| Nominal voltage: 230 V |
| Frequency: 50 Hz |
| Supported formats & codecs |
| Video-Codecs: MJPEG, H.264 |
| 1080p (1920 x 1080): Yes |
| flip: Yes |
| mirror: Yes |
| VGA (640 x 480): Yes |
| VGA (640 x 360): Yes |
| 720p(1280 x 720): Yes |
| QVGA (320 x 180): Yes |
| Frame rate: 1 ... 30 |
| QVGA (320 x 240): Yes |
| Scope of Delivery |
| Indoor camera 1, WLAN antenna, wall mount bracket with screws, network cable, power adapter |
