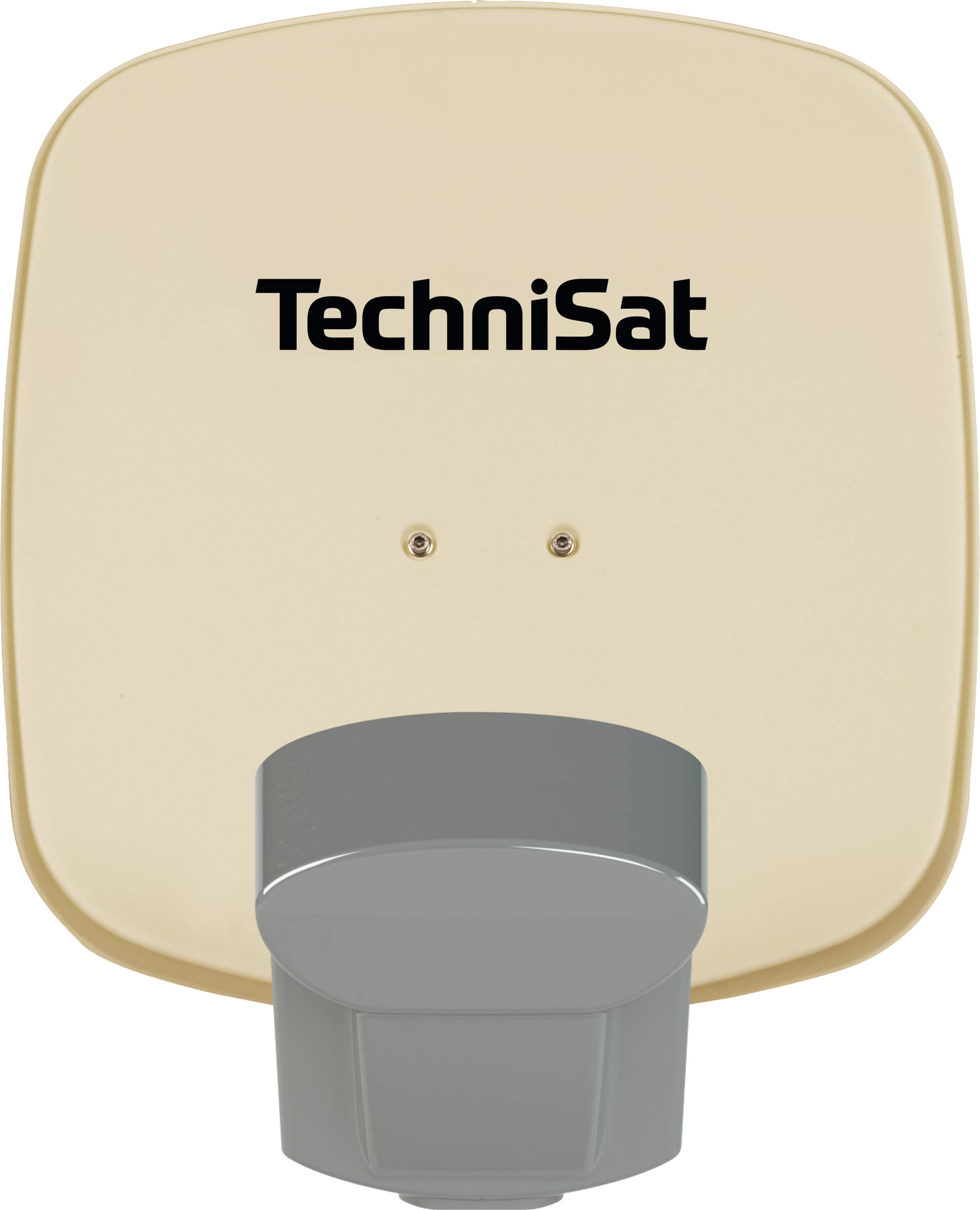

The Multytenne receives four satellite positions with only 45 cm of antenna diameter, without the antenna having to be rotated.
EAN Colour Item no. Weight (Box) Weight Device (W x H x D) Box
4019588548145 yellow with Smiley 1545/8814 5,1 kg 4 kg
4019588448841 brick/red 1445/8814 5,1 kg 4 kg 45 x 48 cm 50,5 x 50 x 24,3 cm
4019588048843 beige 1045/8814 5,1 kg 4 kg 45 x 48 cm 50,5 x 50 x 24,3 cm
4019588048843 beige 1045/8814 5,1 kg 4 kg 45 x 48 cm 50,5 x 50 x 24,3 cm
4019588048843 beige 1045/8814 5,1 kg 4 kg 45 x 48 cm 50,5 x 50 x 24,3 cm
4019588748842 polar/white 1745/8814 5,1 kg 4 kg 45 x 48 cm 50,5 x 50 x 24,3 cm
4019588048843 beige 1045/8814 5,1 kg 4 kg 45 x 48 cm 50,5 x 50 x 24,3 cm
4019588048843 beige 1045/8814 5,1 kg 4 kg 45 x 48 cm 50,5 x 50 x 24,3 cm
4019588048843 beige 1045/8814 5,1 kg 4 kg 45 x 48 cm 50,5 x 50 x 24,3 cm
4019588348844 slate/grey 1345/8814 5,1 kg 4 kg 45 x 48 cm 50,5 x 50 x 24,3 cm
Top Features
  • The Multytenne Quattro Sat is a high-quality satellite system made of aluminum, with a dish measuring only 45 cm
  • The Multytenne Quattro-Sat is perfectly suited for receiving four orbital positions in two-user operation
  • The satellite system is extremely powerful, extremely compact, and thanks to the included mounting tools, easy and quick to assemble.
  • The premium aluminum and double-sided powder coating ensure exceptional weather resistance. Visually, the Multytenne Quattro Sat is also a masterpiece
sonstiges
bf_filter_diameter: 45 cm
bf_filter_austattung: with LNB
Local oscillator
Low band: 9,75 GHz ± 3 MHz
High band: 10,6 GHz ± 3 MHz
LNB control
Vertical: 11 ... 14 V
Horizontal: 16 ... 20 V
Band switch: 22 kHz
DiSEqC: 1
Ambient operating conditions
Humidity: 5 - 100 %
Ambient temperature: -40 bis 65 °C
General characteristics
Top features: 1 or 2 participants
Material: Aluminium
Top features: 4 orbital positions (Eutelsat 13° East, Astra 19,2° East, Astra 23,5° East and Astra 28,2° East)
Top features: perfect for ground- or wall mounting
Top features: Reception of BBC-channels on Astra 28.2° East
Material strength: 1 mm
Coating: Powder-coated on both sites
Input frequency range
Low band: 10,7 - 11,7 GHz
High band: 11,7 - 12,75 GHz
Noise factor
Lower frequency range: 0,7 dB max.
Upper frequency range: 0,8 dB max.
Output frequency range
Low band: 950 - 1.950 MHz
High band: 1.100 - 2.150 MHz
Power supply
LNB voltage supply: 11 ... 20 V
Power consumption: 170 mA (typ.)
Prepared for
Number of orbit positions: 4 4
Technical data
Rated measurement: 0,45 m
F/D: 0,6
Gain: 32,2 dBi @11,3 GHz
Offset angle: 30 °
Satellite positions: Eutelsat 13° East, Astra 19,2° East, Astra 23,5° East, Astra 28,2° East
Feed reception: for MULTYTENNE QUATTROSAT LNB
Scope of Delivery
Satellite dish antenna SATMAN 45, Multytenne QuattroSat reception unit (LNBs), wall mount, installation instructions
