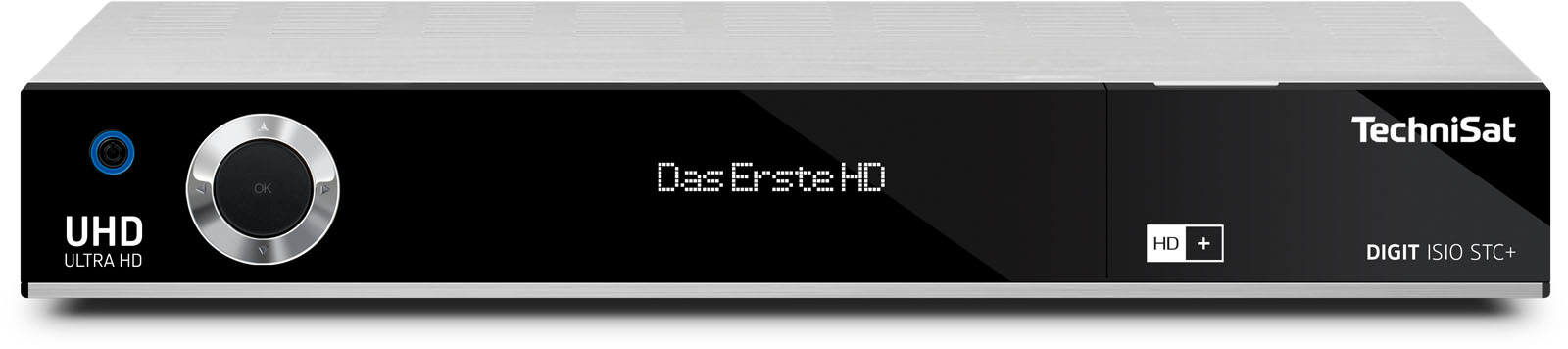

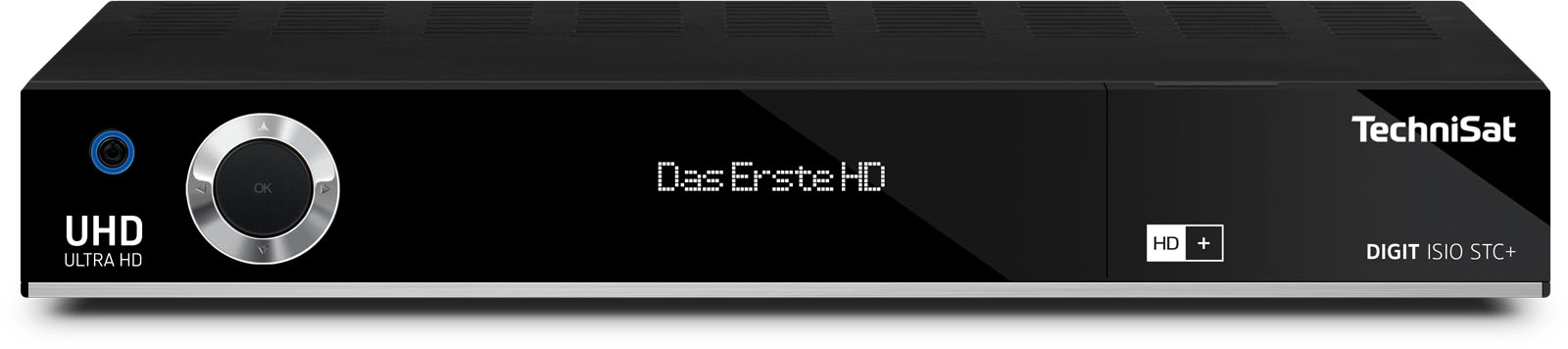

DIGIT ISIO STC+

TechniSat added value services
TECHNIMATIC: Yes
ISIPRO: Yes
ISI-Mode: Yes
AUTOINSTALL: Yes
SFI+: Yes
TECHNIFAMILY: Yes

sonstiges
ts_mehrwert_isipro_kabel: Yes

Multimedia
DVR function: Ja
DVR storage medium: via USB
Multi Recording: Yes
Timeshift: Yes
Recordings edition function: Yes
Recordings folder management: Yes

WLAN
2,4 GHz: Yes
5 GHz: Yes
WLAN: 802.11n a/b/g (2,4 GHz / 5 GHz)

Ambient operating conditions
Ambient temperature: 5 ... 35 °C
Humidity: 10 ... 75 %

LNB control
Vertical: 14 V
Horizontal: 18 V
Band switch: 22 kHz
Current consumption: max. 400 mA (kurzschlussfest)
DiSEqC: 1.0 / 1.2

Internet/Network
Webbrowser: Yes
ISIO Internet: Yes
HTML 5 support: Yes
HbbTV: Yes
Internet speed test: Yes

Card reader
SD card: Yes

Connections
HDMI™ (out): 1 (4K 50/60p / HDCP 2.2)
USB: 2 (USB 3.0)
Common Interface Plus (CI+): Yes
Smartcard reader: Yes
Digital electric audio output (S/PDIF): Yes
Digital optical audio out: Yes
Audio out analogue (RCA): Yes ( rechts / links )
F socket: 2
IEC-Connector: Yes
Ethernet 1Gbit/s (RJ-45): 1

Decoder
Video decoder: MPEG-2 MP@HL/ML, H.264/MPEG-4 AVC, H.265/HEVC
Audio decoder: MPEG-1 & MPEG-2 Layer I, II, III

Decryption system
Conax: Yes
Nagravision: Yes
CI+: Yes

Display
Picture in Picture (PIP): Yes (2x SD, 2x HD, 1x UHD u. 1x HD, 1x UHD u. 1x SD, 1x SD u. 1x HD)
Freeze frame: Yes
Zoom: Yes
UHD/4K upscaling: Yes
SD: Yes
HD: Yes
UHD: Yes
2160p: Yes
1080p: Yes
1080i: Yes
720p: Yes
576p: Yes
576i: Yes
Type: VF-Display, 12-stellig

Handling/comfort
Smart Home client: Yes
Teletext subtitles: Yes
Media Player: Yes
Channel number mix: Yes
Alarm: Yes
Clock: Yes
Channel presets: 9.999
Autostandby: Yes
Remote control: Yes
Teletext: Yes
Selection regional channels: Yes
Quick start: Yes
Sleep timer: Yes
Hotel mode: Yes

Hotel mode
Protected access to hotel mode: Yes
Customisable start screen: Yes
Lockable volume: Yes
Menu locking: Yes
Control panel lock: Yes
Integrated LED clock: Yes
Selectable start source: Yes
Selectable start channel: Yes

Network & communication
UDP: Yes
HTTP: Yes
DHCP: Yes
1000Base-T: Yes
IGMP: Yes
UPnP: Yes
RTP: Yes
TCP/IP: Yes
IPv4: Yes

Other features
OSD languages: English, German, French, Greek, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian

Power consumption
Standby fast start: 5 W
Standby LED: 0,45 W
In operation: 13,5 W

Power supply
Nominal voltage: 230 V
Frequency: 50 Hz
Mains adapter: external DC12V/3A

Ready for reception
HD+: Yes

Streaming
Parental Control: Yes
DLNA Client: Yes
Cloud store: Ja
DLNA Server: Yes

Supported formats & codecs
Video-Codecs: MPEG-2, MPEG-4, MPEG-1, H.264 (bis H.264/AVC Level 4.2), H.265, DivX, VC-1
Video-Formats: M4V, MP4, MKV, MOV, MPG, MTS, TS, TS4, VOB, WMV, Xvid, M2TS, AVI, ASF
Picture-Formats: BMP, JPEG, GIF, PNG
Audio-Formats: WAV, MP3, AAC, FLAC, M4A, MP2, DDAC3, AIFF

TechniSat CONNECT
SFI: Yes

Tuner
Tuner type: 3 x Twin-Tuner
DVB-S tuner: 2
Single Cable Solution (SatCR): SCR1 = EN50494, SCR2 = EN50607
DVB-C Tuner: 2
Tuner DVB-T2: 2 H.265/HEVC
Satellite radio: Yes
Cable radio: Yes
Reception on: UHD-TV, HD-TV, SD-TV
DVB-IP (multicast): 1
TECHNIROUTER ready: Yes
TECHNISELECT 12 ready: Yes

Tuner - Cable
Reception range: 50 ... 858 MHz
Demodulation: 16 / 32 / 64 / 128 / 256 QAM
Symbol rate: 1,5 ... 7,2
FEC: Reed-Solomon (204, 188)

Tuner - Sat
Reception range: 950 ... 2.150 MHz
Viterbi rates: 1/2, 2/3, 3/4, 5/6, 7/8 , (autom. Anpassung)
DVB-S: QPSK
DVB-S: 2 ... 45
DVB-S2: 8PSK-QPSK
DVB-S2: 10 ... 31
FEC: Viterbi and Reed-Solomon

Tuner - Terrestrial
Reception range 1: 174 ... 230 MHz
Reception range 2: 470 ... 862 MHz
Demodulation: COFDM
Transmission mode: 2k/8k
Bitrate: 4,98 ... 31,67 Mbit/s
Voltage supply: 5 V
