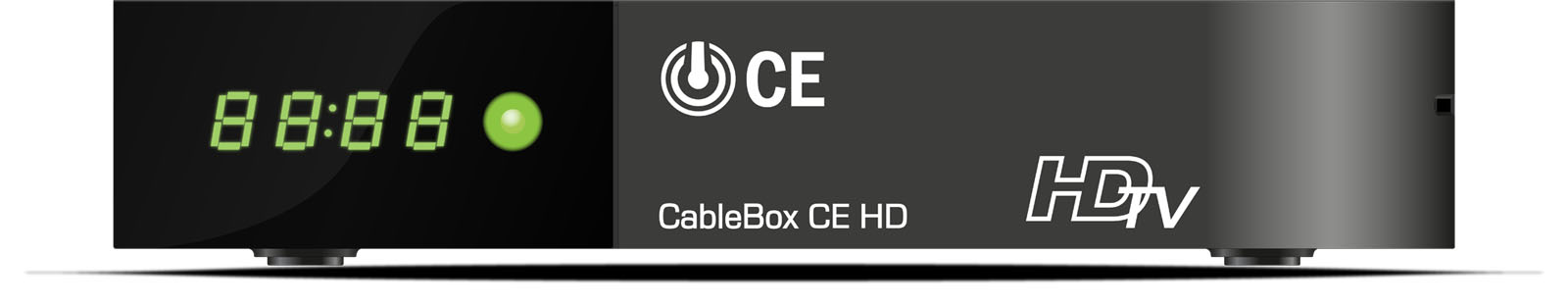

CableBox CE HD

CableBox CE HD

Multimedia HD cable receiver with integrated MediaPlayer and DVRready function

EAN	Colour	Item no.
4019588647824	black	0006/4782

Top Features
Ready for reception encrypted in Conax cable channels Prepared for reception of all digital TV sat channels DVRready: Digital Video Recorder on external hard drive Multimedia USB 2.0 with MediaPlayer: HighSpeed interface Modern on-screen menu Low power consumption

Ambient operating conditions
Ambient temperature: 5 ... 35 °C
Humidity: 10 ... 75 %

Connections
HDMI™ (out): 1
Smartcard reader: Yes
Digital electric audio output (S/PDIF): Yes
Scart: 1

Decryption system
Conax: Yes

Power consumption
Standby LED: < 0,5 W
In operation: 8 W

Power supply
Mains adapter: external DC 12V/1,5A
Nominal voltage: 230 V
Frequency: 50 Hz

Supported formats & codecs
Video-Formats: MKV, MP4, MPG, TS, VOB, WMV, M2TS, FLV, AVI
Picture-Formats: BMP, JPEG, PNG
MP3: Yes

Tuner
Tuner type: DigitalCable
DVB-C Tuner: 1
Reception on: HD (MPEG-4), SD (MPEG-2)

Tuner - Cable
Reception range: 47 ... 862 MHz
Demodulation: 16 / 32 / 64 / 128 / 256 QAM
Symbol rate: 1 ... 7
FEC: Reed-Solomon (204, 188)

Scope of Delivery
CableBox CE HD, remote with batteries, external power supply adapter, HDMI Cable, RF Cable, manual, warranty card
