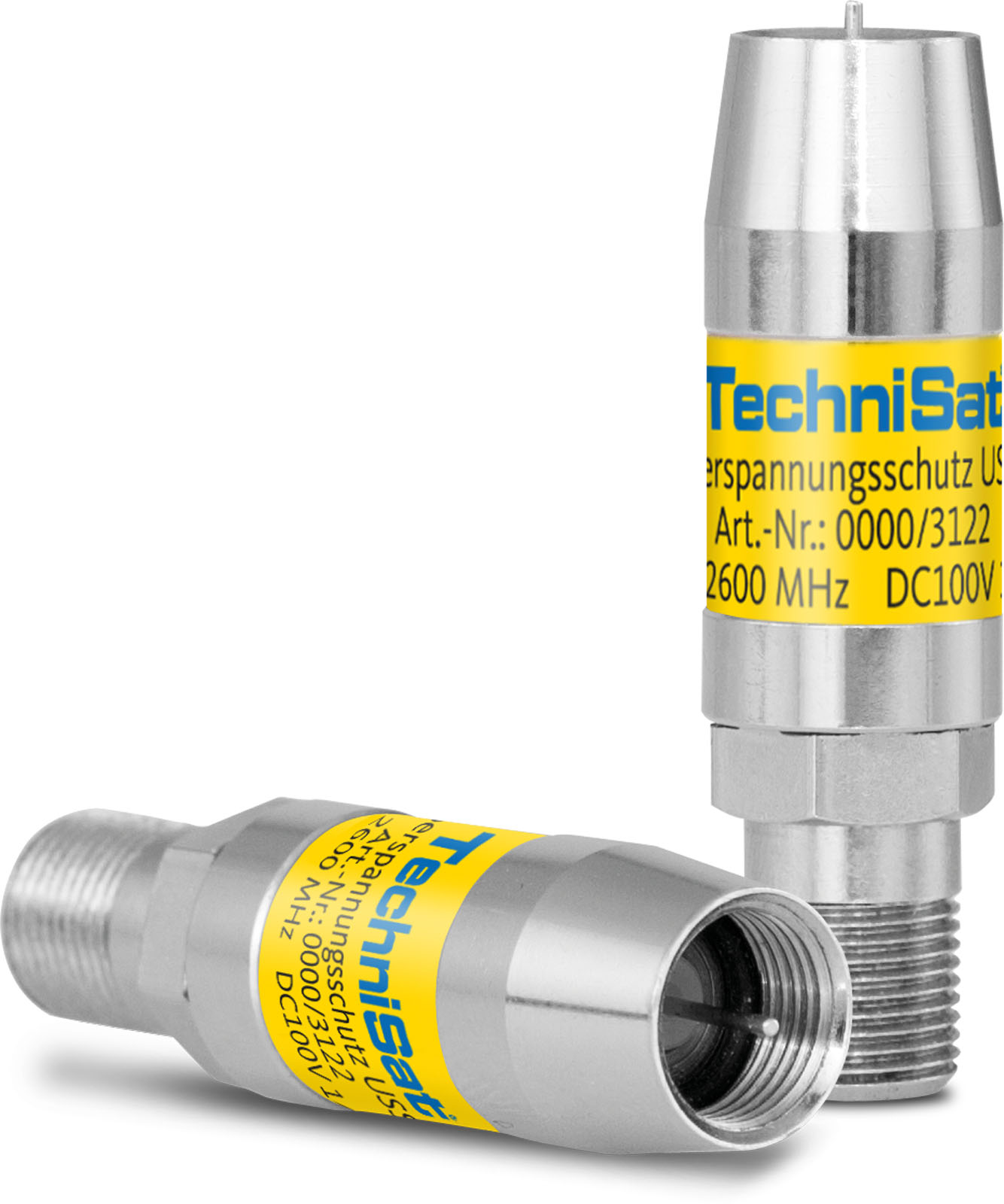

Surge Protector
For the protection of all satellite reception equipment
| Colour |
EAN |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| silver/yellow |
4019588031227 |
0000/3122 |
38 g |
20 g |
1,4 x 4,5 x 1 cm |
5 x 8 x 6 cm |
| Top Features |
- Overvoltage protection according to IEC 61000-4-5 Class 4 (4KV)
- Protection for all satellite distribution systems
- Also suitable for satellite receivers, TVs, and cable modems with F-connector
- Waterproof to IP67 thanks to O-ring, suitable for outdoor use
|
| Ambient operating conditions |
| IP class: 67 |
| Temperature: -25 ... 55 °C |
| Humidity: 5 ... 99 % |
| Operating altitude: 2.000 m ü.NN |
| DC outlet |
| SAT: 100 V / 1 A |
| Technical data |
| Frequency range: 5 ... 2.600 MHz |
| Transmission loss: < 0,5 dB |
| Shielding factor: > 100 dB ≙ EN 50083-2 (Klasse A+) |
| Connector type: F female/F male |
| Impedance: 75 Ω |
| Scope of Delivery |
| 1 x Surge Protector USS1 |
