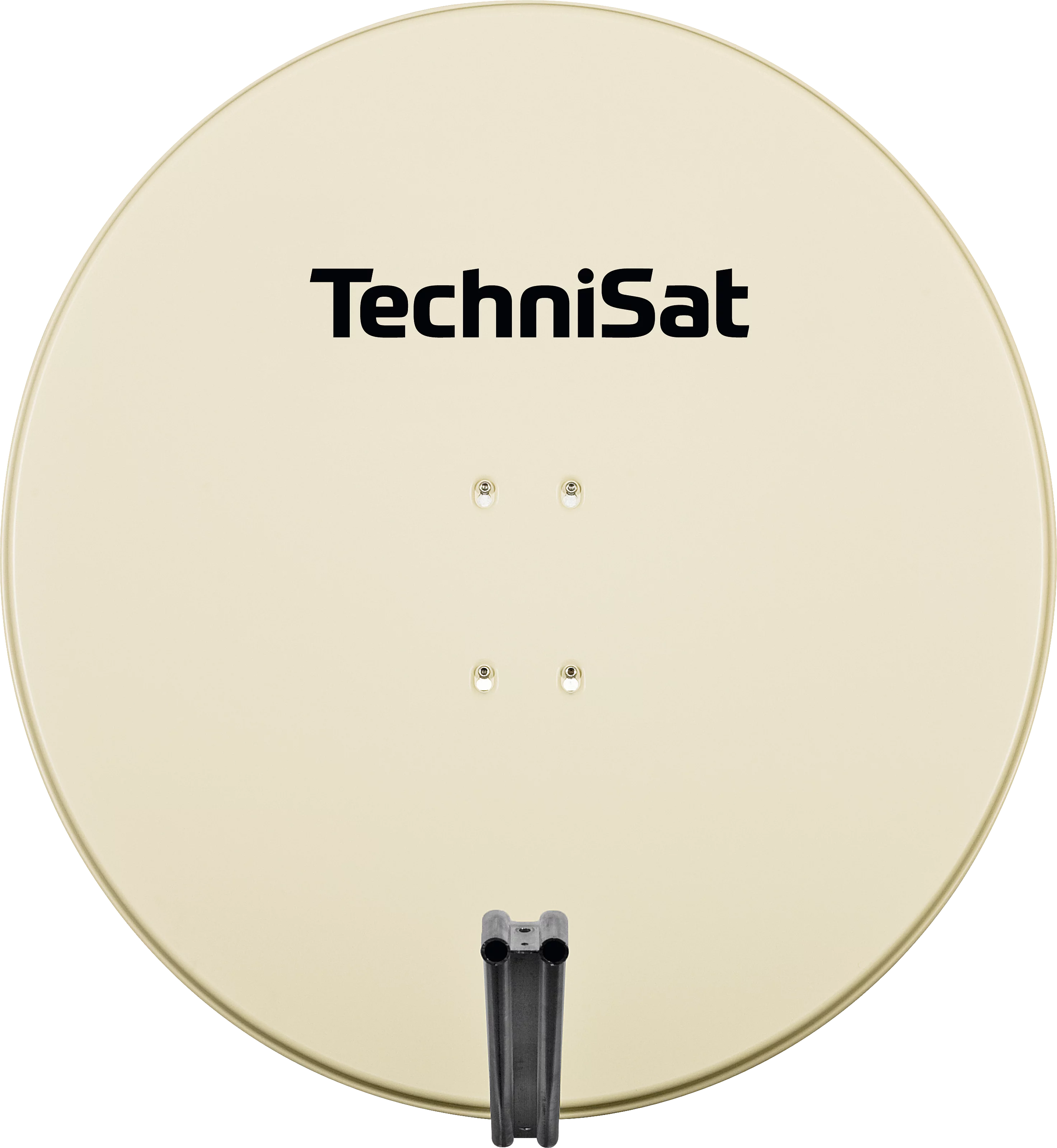

SATMAN 850 PLUS incl. AZ/EL-mount for UNYSAT Universal-LNB
Digital Satellite dish with a diameter of 85 cm and completly pre-installed AZ/EL-mount.
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588108547 |
beige |
1085/1644 |
8,4 kg |
4,8 kg |
85 x 87 cm |
88 x 95 x 24 cm |
| 4019588138544 |
slate grey |
1385/1644 |
8,4 kg |
4,8 kg |
85 x 87 cm |
88 x 95 x 24 cm |
| 4019588178540 |
polar white |
1785/1644 |
8,4 kg |
4,8 kg |
|
87 x 91,5 x 23 cm |
| 4019588128545 |
green |
1285/1644 |
8,4 kg |
4,8 kg |
85 x 87 cm |
88 x 95 x 24 cm |
| 4019588148543 |
brick red |
1485/1644 |
8,4 kg |
4,8 kg |
85 x 87 cm |
88 x 95 x 24 cm |
| 4019588158542 |
yellow with Smiley |
1585/1644 |
8,4 kg |
4,8 kg |
85 x 87 cm |
88 x 95 x 24 cm |
| 4019588108547 |
beige |
1085/1644 |
8,4 kg |
4,8 kg |
85 x 87 cm |
88 x 95 x 24 cm |
| Top Features |
- 85 cm dish made of first-class aluminum (powder-coated on both sides)
- Ideal for wall and roof mounting
|
| Filter-Navigation |
| Diameter: 85 cm |
| General characteristics |
| Material strength: 1,6 mm |
| Coating: Powder-coated on both sites |
| Material: Aluminium |
| Technical data |
| Rated measurement: 0,85 m |
| F/D: 0,67 |
| G/T: 17,2 |
| Offset angle: 21 ° |
| Gain: 38,2 dBi @11,3GHz |
| Mast Ø: 65 mm max. |
| Feed reception: for UNYSAT-Universal-LNB |
| Scope of Delivery |
| Satellite dish antenna, AZ/EL bracket mount, Screws, Instruction manual |
