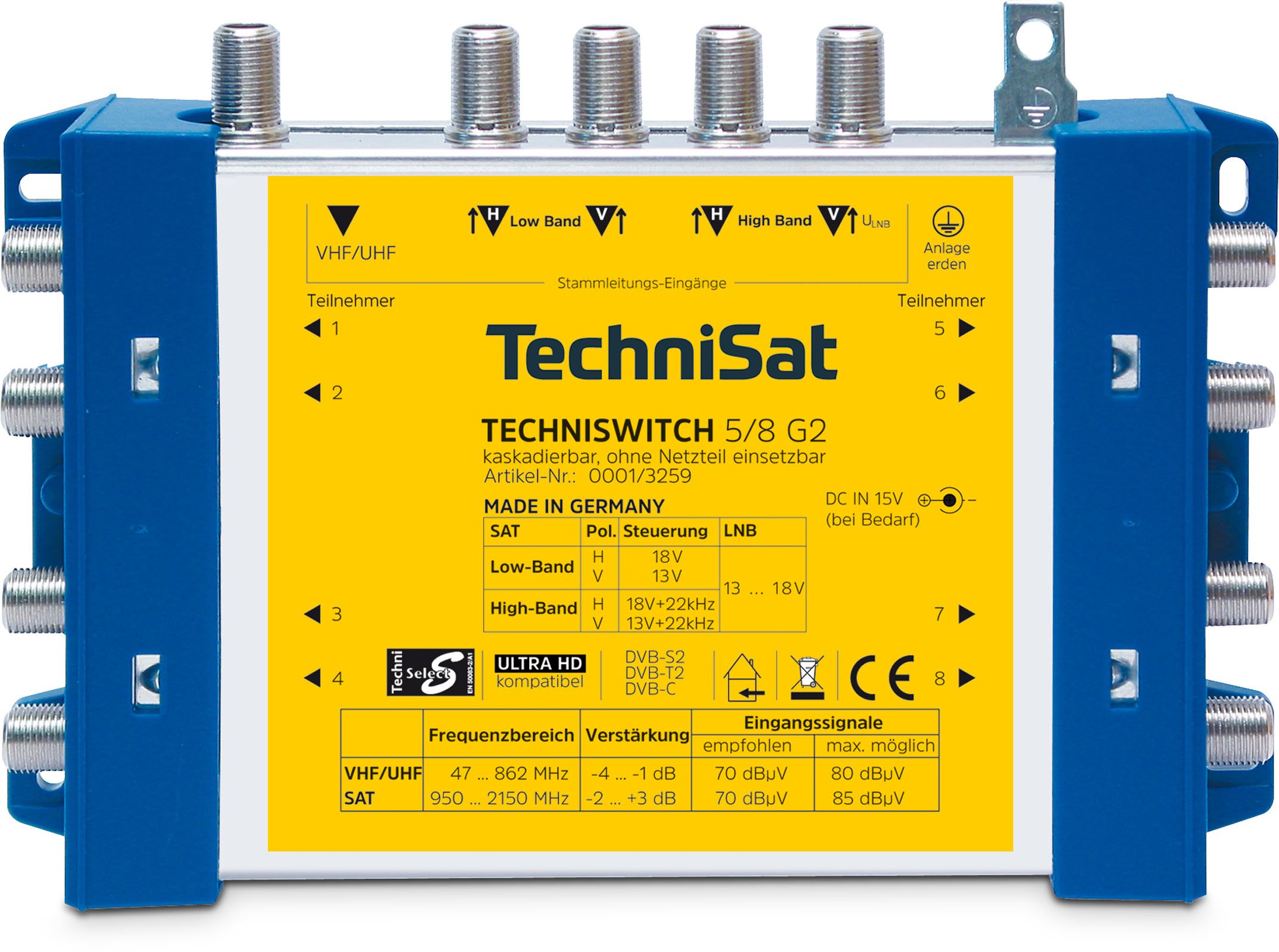

TECHNISWITCH 5/8
Multi-switch system with connection possibility of 4 levels for distribution to up to 16 participants
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
| 4019588132597 |
blue/yellow |
0001/3259 |
776 g |
776 g |
| 4019588032590 |
blue/yellow |
0000/3259 |
350 g |
350 g |
| 4019588232594 |
blue/yellow |
3222/3259 |
400 g |
300 g |
| Ambient operating conditions |
| Ambient temperature: -25 ... 55 °C |
| Amplification |
| Sat: -2 ... 3 dB |
| Terrestrial: -4 ... -1 dB |
| Decoupling |
| Output: > 35 dB |
| General characteristics |
| Top features: Ohne Dämpfung im Sat-Bereich |
| Top features: Mit Schräglagenentzerrung |
| Top features: Für Quattro-LNB |
| Top features: Stromsparend ohne Netzteil einsetzbar |
| Power supply |
| Mains adapter: extern DC 15V/1,2A |
| Nominal voltage: 100 ... 250 V |
| Frequency: 50 ... 60 Hz |
| Reception range |
| Sat: 950 ... 2.150 MHz |
| Terrestrial: 47 ... 862 MHz |
| Technical data |
| Satellite inputs: 4 |
| Terrestrial input: 1 |
| Outputs: 8 |
| Distribution length: max. 100 m |
| Scope of Delivery |
| TechniSwitch 5/8 G2, Power supply, manual |
