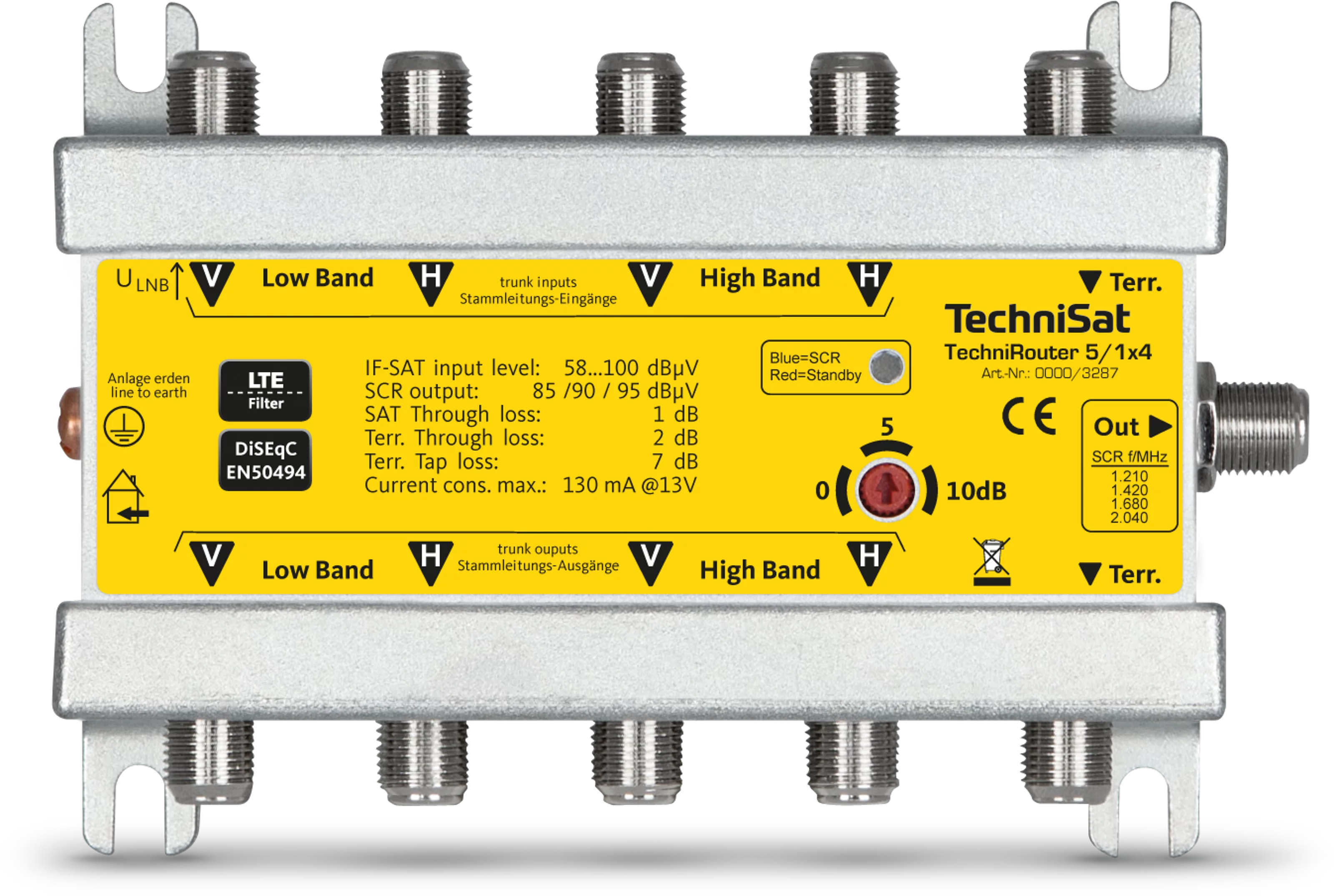

TECHNIROUTER 5/1x4

LNB control
Current consumption: max. 300 mA (wird vom Router erzeugt)

Ambient operating conditions
Humidity: 10 ... 75 %
Ambient temperature: -25 ... 45 °C

Amplification
Sat: -15 ... 35 dB AGC gesteuert
Terrestrial: -7 dB bezogen auf Eingang

Decoupling
Trunks: ≥ 30 dB

General characteristics
Top features: SCR protocol according to EN 50494
Top features: Can be integrated into a multi-switch distribution
Top features: Energy-saver - can be used without power supply
Top features: Automatic gain control (AGC)
Top features: SCR level adjustable

Power supply
Power consumption: max. 130 mA @13V

Reception range
Terrestrial: 5 ... 790 MHz
Sat: 950 ... 2.200 MHz

Single-cable output
Output frequency: 5 ... 2.150 MHz
Number of output channels: 4
Frequency of the output channels: 1210, 1420, 1680, 2040 MHz
Frequency SAT: 950 ... 2.150 MHz
Frequency DVB-T: 5 ... 790 MHz
Output level: ≤ 85 ... 95 typ.

Technical data
Satellite inputs: 4
Terrestrial input: 1
Number of cable connections: 1
Subscribers per cable: 4

Transmission loss
Sat: ≤ 1 dB
Terrestrial: ≤ 2 dB

Tuner
TECHNIROUTER ready: Yes
