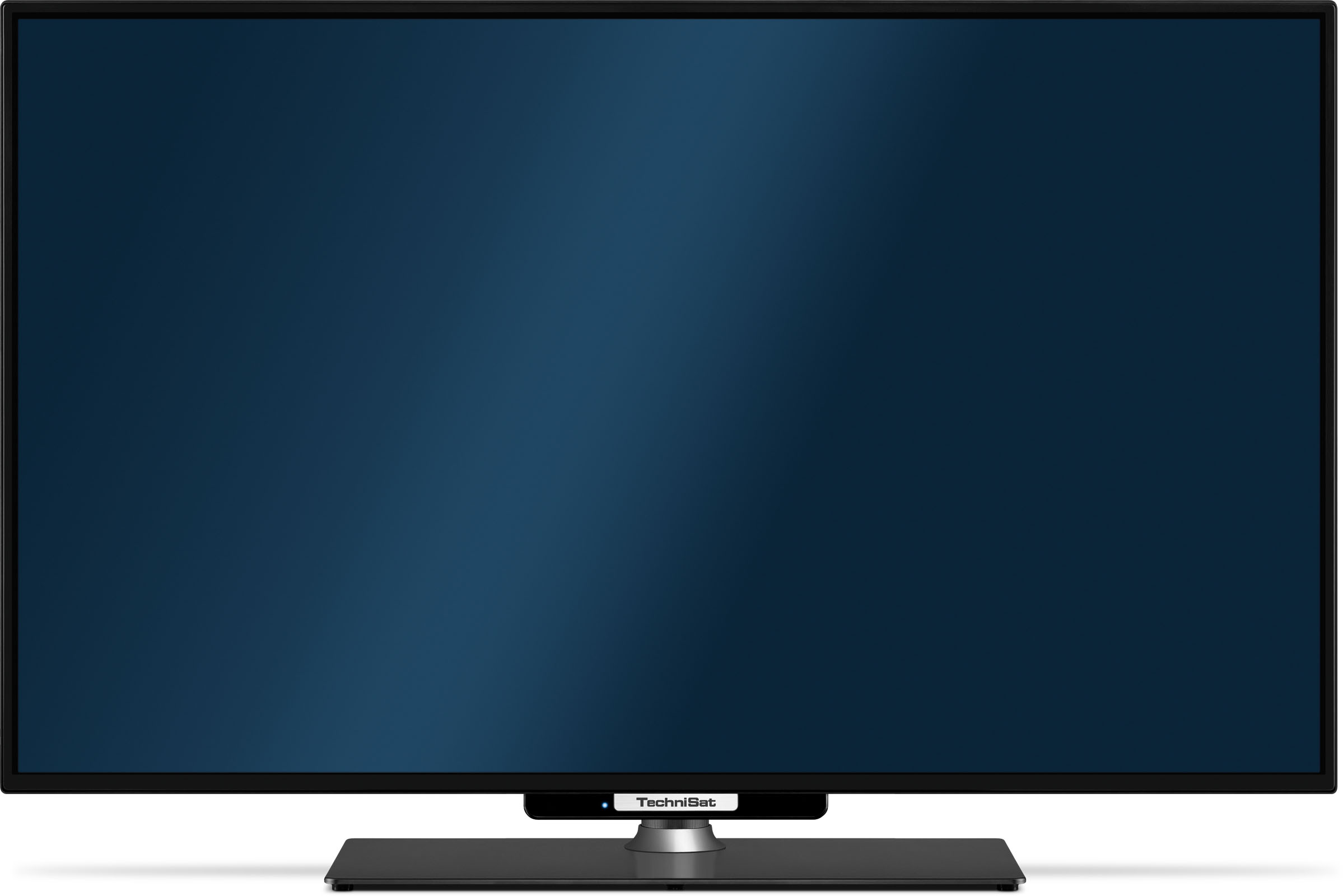

TECHNISMART 39 Plus
Smart-TV with Quattro Tuner, digital video recorder function via USB and internet functionality in a noble design
| Colour | Weight without stand | EAN | Item no. | Unit without stand (W x H x D) |
|---|---|---|---|---|
| titan | 9 kg | 4019588539822 | 5039/8200 | 895 x 540 x 63 mm |
| Top Features |
|---|
|
| LNB control |
|---|
| Vertical: 14 V |
| Horizontal: 18 V |
| Band switch: 22 kHz |
| Current consumption: max. 550 mA |
| DiSEqC: 1.x |
| TechniSat added value services |
|---|
| AUTOINSTALL: Yes |
| Internet/Network |
|---|
| HbbTV: Yes |
| Audio |
|---|
| Speakers: 2 x 8 W |
| Connections |
|---|
| HDMI™ (in): 3 |
| Common Interface Plus (CI+): Yes |
| Digital electric audio output (S/PDIF): Yes |
| AV input: Yes (3,5mm Klinke seitlich) |
| VGA: Yes |
| YUV (component input): Yes (YPbPr) |
| Scart: 1 |
| S Video: Yes (via SCART) |
| Ethernet 10/100 (RJ-45): Yes |
| F socket: 1 |
| IEC-Connector: Yes |
| Decryption system |
|---|
| CI+: Yes |
| Dimensions / Weight |
|---|
| Weight without stand: 9,2 kg |
| Set height without stand: 510 mm |
| Set width without stand: 883 mm |
| Set depth without stand: 63 mm |
| Display |
|---|
| Size (cm): 99 cm |
| Frequency: 200 Hz CMPR (Clear Motion Picture Rate) |
| Format: 16:9 |
| Brightness: 300 cd/m² |
| Angle of view: 178°/178° |
| Format switchover: Auto. 16:9, subtitle, 14:9, 14:9 zoom, 4:3, cinema |
| Zoom: Yes |
| Resolution (vertical and horizontal): 1920 x 1080 |
| Size (inches): 39 |
| Type: Full HD eLED |
| Handling/comfort |
|---|
| Alarm: Yes |
| Sleep timer: Yes |
| Hotel mode |
|---|
| Protected access to hotel mode: Yes |
| Customisable start screen: Yes |
| USB cloning function: Yes |
| Lockable volume: Yes |
| Menu locking: Yes |
| Teletext deactivation: Yes |
| Control panel lock: Yes |
| Alarm function: Yes |
| Sleep timer: Yes |
| Selectable start source: Yes |
| Selectable start channel: Yes |
| Other features |
|---|
| OSD languages: German, Czech, Portuguese, Lithuanian, English, Dutch, Polish, French, Russian, Swedish, Spanish, Greek, Hungarian, Italian, Turkish |
| Total programme memory: 10.000 |
| Power consumption |
|---|
| Energy class: A |
| In operation: 59 W |
| annual energy consumption when switched on: 86 kilowatt hour per annum |
| Standby: 0,5 W |
| Power switch: Yes |
| Contains no mercury: Yes |
| Power supply |
|---|
| Nominal voltage: 230 V |
| Frequency: 50 Hz |
| Supported formats & codecs |
|---|
| Video-Codecs: MPEG-2, MPEG-4, MPEG-1, H.264, VC-1 |
| Video-Formats: MKV, MP4, MOV, MPG, VOB, WMV, Xvid, FLV, DAT, AVI, ASF |
| Picture-Formats: BMP, JPEG, PNG |
| Audio-Formats: WAV, MP3, AAC, M4A, MP2, DDAC3, WMA |
| Tuner |
|---|
| DVB-S tuner: 1 |
| DVB-C Tuner: 1 |
| DVB-T Tuner: 1 |
| Analogue UHF/VHF/CATV tuner: 1 |
| Input impedance: 75 Ω |
| TECHNIROUTER ready: Yes |
| Tuner - Analogue |
|---|
| Video standards: PAL, SECAM, NTSC |
| Reception range: 42 ... 862 MHz |
| Tuner - Cable |
|---|
| Demodulation: QAM |
| Reception range: 42 ... 1.002 MHz |
| Tuner - Sat |
|---|
| Reception range: 950 ... 2.150 MHz |
| DVB-S2: Ja |
| DVB-S: Ja |
| Tuner - Terrestrial |
|---|
| Demodulation: COFDM |
| wall bracket |
|---|
| VESA wall mounting standards: VESA 200x200 |
| Scope of Delivery |
|---|
| TechniSmart Plus TV set, rotatable foot, remote control incl. batteries, AV-connection cable, manual |
