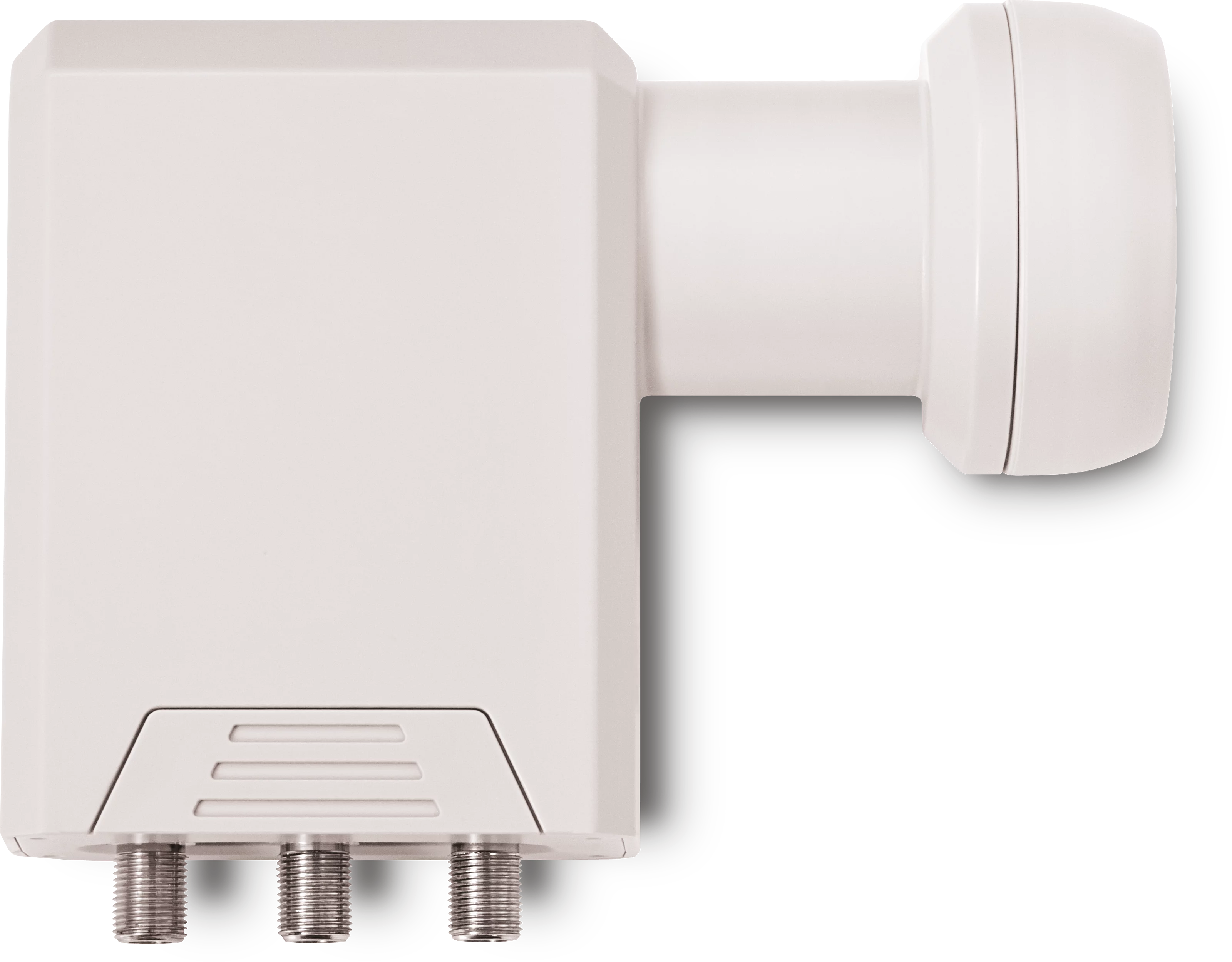

SCR-LNB
SCR-LNB with 2 legacy outputs
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588178861 |
beige |
0017/8886 |
344 g |
292 g |
14,5 x 6 x 11,5 cm |
12,3 x 6,5 x 15 cm |
| Top Features |
- 4 Receiver mit SCR-Unterstützung anschließbar
- 2 Receiver über Legacy-Ausgang anschließbar
- SCR-Protokoll gemäß EN 50494
|
| sonstiges |
| bf_filter_number_of_participants: 6 |
| bf_filter_number_satellites: 1 |
| Local oscillator |
| Low band: 9,75 GHz |
| High band: 10,6 GHz |
| Accuracy: ± 1 MHz |
| Temperature drift: ± 3 MHz |
| Phase noise: -80 @10kHz |
| LNB control |
| Vertical: 11,5 ... 14 V |
| Horizontal: 16 ... 19 V |
| Band switch: 22 kHz |
| DiSEqC: 1 |
| Ambient operating conditions |
| Ambient temperature: -30 ... 60 °C |
| General characteristics |
| Colour: white |
| Input frequency range |
| Low band: 10,7 ... 11,7 GHz |
| High band: 11,7 ... 12,75 GHz |
| Noise factor |
| Noise figure: 1 dB |
| Output frequency range |
| Low band: 950 ... 1.950 MHz |
| High band: 1.100 ... 2.150 MHz |
| Power supply |
| Power consumption: max. 280 mA @13,5 V |
| Single-cable output |
| Output frequency: 950 ... 2.150 MHz |
| Number of output channels: 4 |
| Frequency of the output channels: 1210, 1420, 1680, 2040 MHz |
| Technical data |
| Outputs: 3 ; 1x SCR (gilded), 2x Legacy |
| Amplification: 57 dB |
| Feed reception: ø 40 mm |
| Connector type: F-Buchse |
| Impedance: 75 Ω |
| Scope of Delivery |
| TechniSat SCR-LNB |
