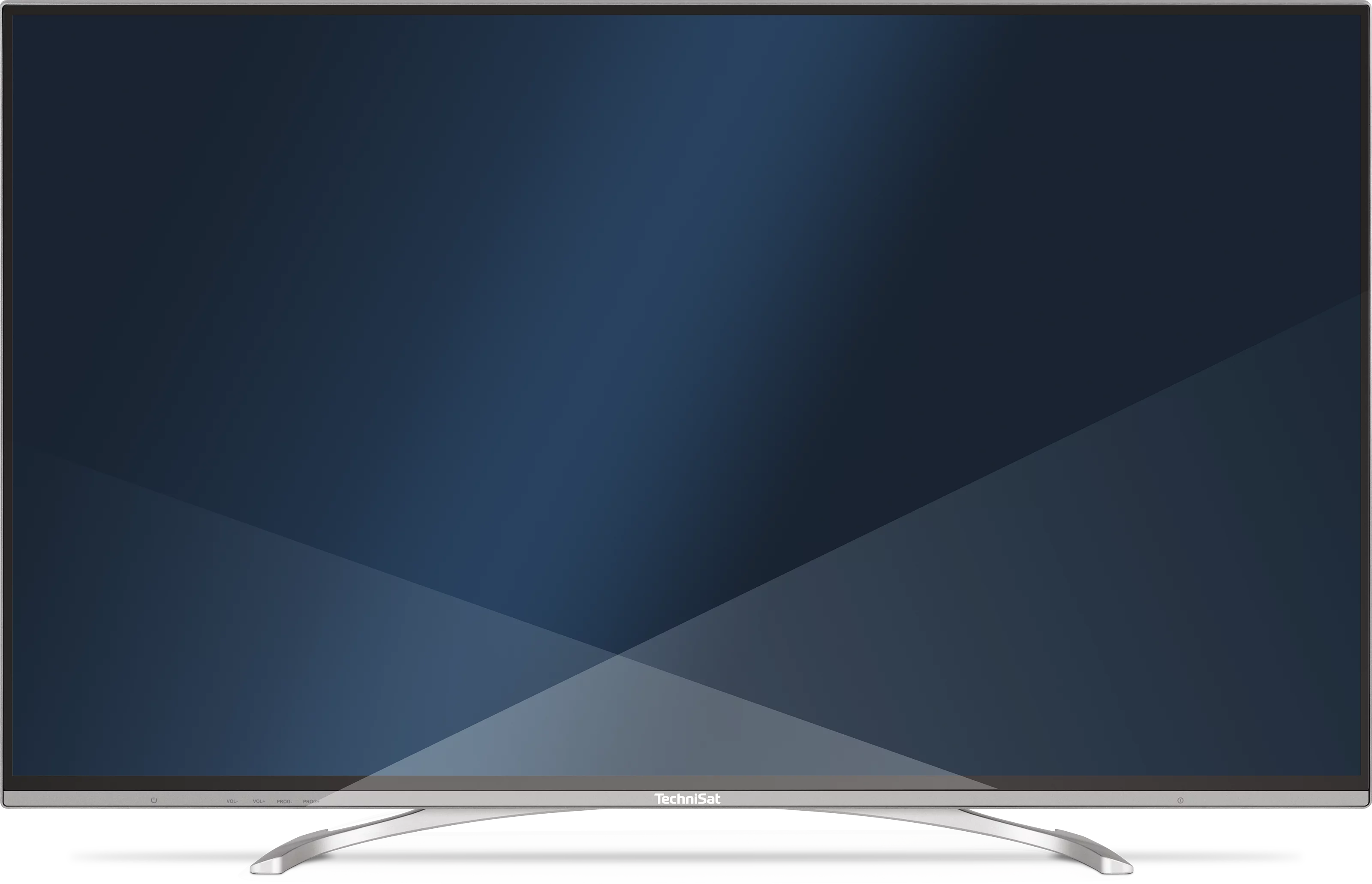

TECHNITWIN ISIO 55

Ambient operating conditions
Humidity: 10 ... 75 %
Ambient temperature: 5 ... 35 °C

LNB control
Vertical: 14 V
Horizontal: 18 V
Band switch: 22 kHz
Current consumption: max. 400 mA (kurzschlussfest)
DiSEqC: 1.0 / 1.2 / SCR1 = EN50494, SCR2 = EN50607

TechniSat added value services
AUTOINSTALL: Yes

Internet/Network
HbbTV: Yes

Audio
HDMI ARC: Yes
Speakers: 2 x 2-way sound system
AC3 Dolby Digital bitstream out: Yes

Connections
HDMI™ (in): 4
Digital electric audio output (S/PDIF): Yes
Digital optical audio out: Yes
Audio out analogue (RCA): Yes (3,5 mm Klinke)
Scart: 1 (via Mini-Scart-Adapter)
Ethernet 10/100 (RJ-45): Yes
F socket: 2
IEC-Connector: Yes

Decryption system
CI+: Yes

Dimensions / Weight
Set width without stand: 1.234 mm
Set depth without stand: 71 mm
Weight without stand: 25 kg
Set height without stand: 717 mm

Display
Size (cm): 140 cm
Format: 16:9
Contrast ratio: 1400:1
Brightness: 450 cd/m²
Picture in Picture (PIP): Yes (2x SD, 2x HD, 1x SD u. 1x HD)
Response time: < 5 ms
Angle of view: 178° / 178°
Picture and Picture (PAP): Yes (2x SD, 2x HD, 1x SD u. 1x HD)
Freeze frame: Yes
Zoom: Yes
SD: Yes
HD: Yes
Type: Ultra HD
1080i: Yes
720p: Yes
Resolution (vertical and horizontal): 3840 x 2160
Size (inches): 55

General characteristics
Appearance: Slim 55mm

Handling/comfort
Alarm: Yes
Clock: Yes
Sleep timer: Yes

Hotel mode
Protected access to hotel mode: Yes
Customisable start screen: Yes
Energy card function: Yes
USB cloning function: Yes
Multimedia connectors: Yes
Lockable volume: Yes
Menu locking: Yes
Control panel lock: Yes
Radio mode: Yes
Alarm function: Yes
Sleep timer: Yes
Mixing of channel slots: Yes
Multicode remote control: Yes
Selectable start source: Yes
Selectable start channel: Yes

materials contained
Lead: Yes

Other features
OSD languages: English, German, French, Greek, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian
Total programme memory: 5.000
Regional channel selection: Yes

Power consumption
SFIplus updating: 38 W
Energy class: A+
Software update: 38 W
Standby fast start: < 17 W
In operation: 85 W
annual energy consumption when switched on: 118 kilowatt hour per annum
Standby: 0,38 W
Off status: 0 W
Power switch: Yes
Contains no mercury: Yes

Power supply
Nominal voltage: 230 V
Frequency: 50 Hz
Mains adapter: internal

Supported formats & codecs
Video-Codecs: MPEG-2, MPEG-4, H.264, DivX, VC-1
Video-Formats: M4V, MP4, MKV, MOV, MPG, TS, TS4, VOB, WMV, Xvid, M2V, M2TS, AVI, ASF
Picture-Formats: BMP, JPEG, GIF, PNG, TIFF
Audio-Formats: WAV, MP3, AAC, FLAC, M4A, MP2, OGG, DDAC3, WMA

Tuner
Tuner type: Doppel-QuattroTuner
DVB-S tuner: 2
DVB-C Tuner: 2
DVB-T Tuner: 2
Analogue UHF/VHF/CATV tuner: 2
Reception on: HDTV (MPEG-4), SD (MPEG-2)
Input impedance: 75 Ω
TECHNIROUTER ready: Yes
TECHNISELECT 12 ready: Yes

Tuner - Analogue
Reception range: 47 ... 862 MHz
Video standards: PAL B/G, D/K, L/L, I

Tuner - Cable
Reception range: 47 ... 862 MHz
Demodulation: 16-, 32-, 64-, 128-, 256-QAM
Symbol rate: 1,5 ... 7,2
FEC: Reed-Solomon (204, 188)

Tuner - Sat
Reception range: 950 ... 2.150 MHz
DVB-S: QPSK
DVB-S: 2 ... 45 (MCPC / SCPC)
DVB-S2: 8PSK - QPSK
DVB-S2: 10 ... 31 (MCPC / SCPC)
FEC: RS, LDPC, BCH

Tuner - Terrestrial
Reception range 1: 174 ... 230 MHz
Reception range 2: 470 ... 862 MHz
Demodulation: COFDM (QPSK, 16-QAM, 64-QAM)
Transmission mode: 2k/8k
Bitrate: 4,98 ... 31,67
FEC: 1/2, 2/3, 3/4, 5/6, 6/7, 7/8
Voltage supply: 5 V
Power supply: 0,03 A

wall bracket
VESA wall mounting standards: VESA 400x400
