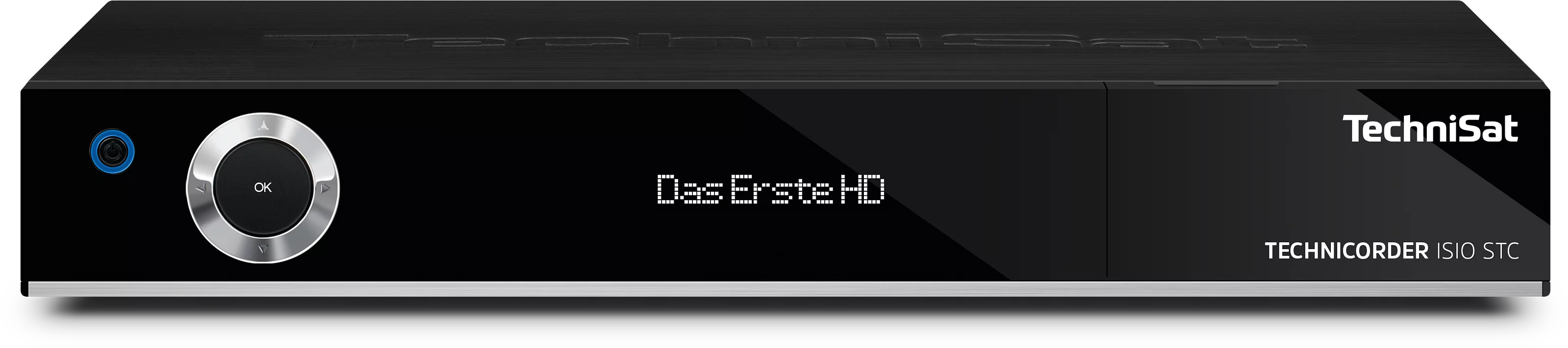

TECHNICORDER ISIO STC
Digital HDTV satellite receiver with internet functionality
| VPE Karton | Hard drive | VPE Palette | EAN | Colour | Item no. |
|---|---|---|---|---|---|
| 4 | Einschubmöglichkeit und extern | 85 | 4019588047303 | black anodised | 0000/4730 |
| 4 | Einschubmöglichkeit und extern | 85 | 4019588147300 | silver anodised | 0001/4730 |
| 4 | Einschubmöglichkeit und extern GigaByte | 85 | 4019588247307 | chili/red anodised | 0002/4730 |
| 4 | Einschubmöglichkeit und extern GigaByte | 85 | 4019588347304 | brilliant/blue anodised | 0003/4730 |
| 4 | Einschubmöglichkeit und extern GigaByte | 85 | 4019588447301 | ultraviolet anodised | 0004/4730 |
| 4 | Einschubmöglichkeit und extern | 85 | 4019588047303 | black anodised | 0000/4730 |
| Top Features |
|---|
|
| sonstiges |
|---|
| ts_mehrwert_isipro_kabel: Yes |
| Ambient operating conditions |
|---|
| Ambient temperature: 5 ... 35 °C |
| Humidity: 10 ... 75 % |
| LNB control |
|---|
| Vertical: 14 V |
| Horizontal: 18 V |
| Band switch: 22 kHz |
| Current consumption: max. 400 mA (kurzschlussfest) |
| DiSEqC: 1.0 / 1.2 / SCR1 = EN50494, SCR2 = EN50607 |
| TechniSat added value services |
|---|
| AUTOINSTALL: Yes |
| Internet/Network |
|---|
| HbbTV: Yes |
| HTML 5 support: Yes |
| Card reader |
|---|
| SD card: Yes |
| Connections |
|---|
| HDMI™ (out): 1 |
| SATA Interface: 1 |
| Smartcard reader: Yes |
| Digital electric audio output (S/PDIF): Yes |
| Digital optical audio out: Yes |
| Audio out analogue (RCA): Yes (rechts / links) |
| Scart: 1 |
| F socket: 2 |
| Decryption system |
|---|
| Conax: Yes |
| CI+: Yes |
| Display |
|---|
| Picture in Picture (PIP): Yes (2x HD, 2x SD, 1x SD u. 1x HD) |
| Freeze frame: Yes |
| Zoom: Yes |
| HD: Yes |
| 720p: Yes |
| 576i: Yes |
| SD: Yes |
| 1080i: Yes |
| 576p: Yes |
| General characteristics |
|---|
| Hard drive: Einschubmöglichkeit und extern GigaByte |
| Handling/comfort |
|---|
| Sleep timer: Yes |
| Alarm: Yes |
| Hotel mode |
|---|
| Protected access to hotel mode: Yes |
| Customisable start screen: Yes |
| Lockable volume: Yes |
| Menu locking: Yes |
| Control panel lock: Yes |
| Integrated LED clock: Yes |
| Selectable start source: Yes |
| Selectable start channel: Yes |
| Other features |
|---|
| OSD languages: English, German, French, Greek, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian |
| Total programme memory: 9.999 |
| Regional channel selection: Yes |
| Loopthrough: Yes |
| Power consumption |
|---|
| Standby fast start: 7,7 W |
| Standby LED: < 0,25 W |
| In operation: 12 W |
| Power supply |
|---|
| Nominal voltage: 230 V |
| Frequency: 50 Hz |
| Mains adapter: internal |
| Supported formats & codecs |
|---|
| Video-Codecs: MPEG-2, MPEG-4, MPEG-1, H.264, DivX |
| Video-Formats: MKV, MP4, MOV, TS, TS4, VOB, WMV, Xvid, AVI |
| Picture-Formats: BMP, JPEG |
| Audio-Formats: AAC, MP3, M4A, MP2 |
| TechniSat CONNECT |
|---|
| SFI: Yes |
| Tuner |
|---|
| Tuner type: Doppel-Quattro Tuner |
| DVB-S tuner: 2 |
| DVB-C Tuner: 2 |
| DVB-T Tuner: 2 |
| Reception on: HDTV (MPEG-4 & 2), SD (MPEG-2) |
| Input impedance: 75 Ω |
| TECHNIROUTER ready: Yes |
| TECHNISELECT 12 ready: Yes |
| Tuner - Cable |
|---|
| Reception range: 47 ... 862 MHz |
| Demodulation: 16 / 32 / 64 / 128 / 256 QAM |
| Symbol rate: 1,5 ... 7,2 |
| FEC: Reed-Solomon (204, 188) |
| Tuner - Sat |
|---|
| Reception range: 950 ... 2.150 MHz |
| Viterbi rates: 1/2, 2/3, 3/4, 5/6, 7/8 , (autom. Anpassung) |
| DVB-S: QPSK |
| DVB-S: 2 ... 45 |
| DVB-S2: 8PSK-QPSK |
| DVB-S2: 10 ... 31 |
| FEC: Viterbi and Reed-Solomon |
| Tuner - Terrestrial |
|---|
| Reception range 1: 174 ... 230 MHz |
| Reception range 2: 470 ... 862 MHz |
| Demodulation: COFDM |
| Transmission mode: 2k/8k |
| Bitrate: 4,98 ... 31,67 Mbit/s |
| Voltage supply: 5 V |
| Scope of Delivery |
|---|
| TECHNICORDER ISIO STC, remote control including batteries, removable frame for 2.5" SATA-HDD, mains cable, HDMI cable, operating instructions, guarantee card |
Test Results TECHNICORDER ISIO STC
Note: Sehr gut (95,8%)
SATVISION (01/2015)
Referenzklasse / 4 von 5 Sternen
hifitest.de (05/2015)
Note 1,2 Referenzklasse / Preis-Leistung: sehr gut
SAT Empfang (2/2015)
Der beste Sat-Receiver
Alles Beste (01/2015)
