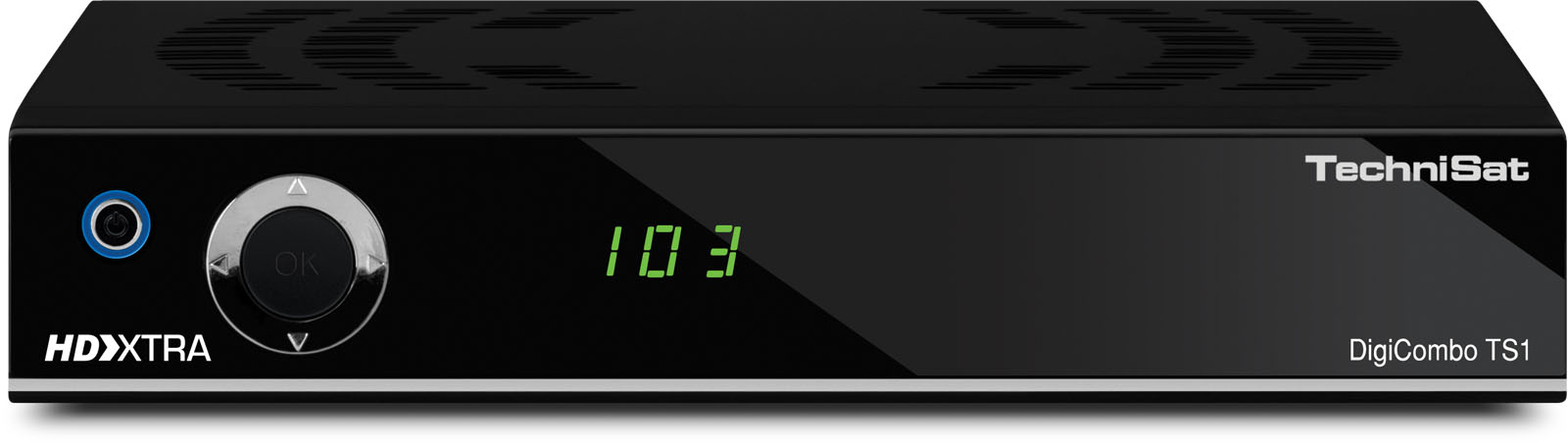

DigiCombo TS1
DVB-S2 and DVB-T/T2 combo receiver with CI+ interface and DVR functionality via USB for the record of TV- and radio channels to an external HDD.
| Hard drive | Colour | EAN | Item no. |
|---|---|---|---|
| extern | black | 4019588047365 | 0000/4736 |
| Top Features |
|---|
|
| Ambient operating conditions |
|---|
| Ambient temperature: 5 ... 35 °C |
| Humidity: 10 ... 75 % |
| LNB control |
|---|
| Vertical: 14 V |
| Horizontal: 18 V |
| Band switch: 22 kHz |
| DiSEqC: 1.0 Sat-CR |
| TechniSat added value services |
|---|
| AUTOINSTALL: Yes |
| Connections |
|---|
| HDMI™ (out): 1 |
| Common Interface Plus (CI+): Yes |
| Digital optical audio out: Yes |
| Audio out analogue (RCA): Yes (rechts / links) |
| Scart: 1 |
| F socket: 1 |
| Connector for external IR-Receiver: 1 |
| Decryption system |
|---|
| CI+: Yes |
| Display |
|---|
| HD: Yes |
| SD: Yes |
| 1080i: Yes |
| 576i: Yes |
| 576p: Yes |
| 720p: Yes |
| General characteristics |
|---|
| Hard drive: extern |
| Handling/comfort |
|---|
| Ideal for camping: Yes |
| Other features |
|---|
| OSD languages: English, German, French, Italian, Dutch, Polish, Portuguese, Slovakian, Spanish, Czech |
| Loopthrough: Yes |
| Power consumption |
|---|
| Standby LED: < 0,5 W |
| In operation: 6 W |
| Power supply |
|---|
| Nominal voltage: 230 V |
| Frequency: 50 Hz |
| Mains adapter: internal |
| Tuner |
|---|
| Tuner type: DigitalSat und DVB-T2 |
| DVB-S tuner: 1 |
| DVB-T Tuner: 1 |
| Reception on: HDTV (MPEG-4 & 2), SD (MPEG-2) |
| Input impedance: 75 Ω |
| TECHNIROUTER ready: Yes |
| Tuner - Sat |
|---|
| Reception range: 950 ... 2.150 MHz |
| Viterbi rates: 1/2, 2/3, 3/4, 5/6, 7/8 , (autom. Anpassung) |
| DVB-S: QPSK |
| DVB-S: 2 ... 45 |
| DVB-S2: 8PSK - QPSK |
| DVB-S2: 10 ... 31 |
| FEC: Viterbi and Reed-Solomon |
| Tuner - Terrestrial |
|---|
| Reception range 1: 170 ... 230 MHz |
| Reception range 2: 470 ... 862 MHz |
| Demodulation: COFDM (QPSK, 16-QAM, 64-QAM, 256-QAM) |
| Transmission mode: 2k/8k |
| FEC: 1/2, 2/3, 3/4, 5/6, 6/7, 7/8 |
| Scope of Delivery |
|---|
| DigiCombo TS1, Remote Control (including batteries), User Manual and Warranty Card |
