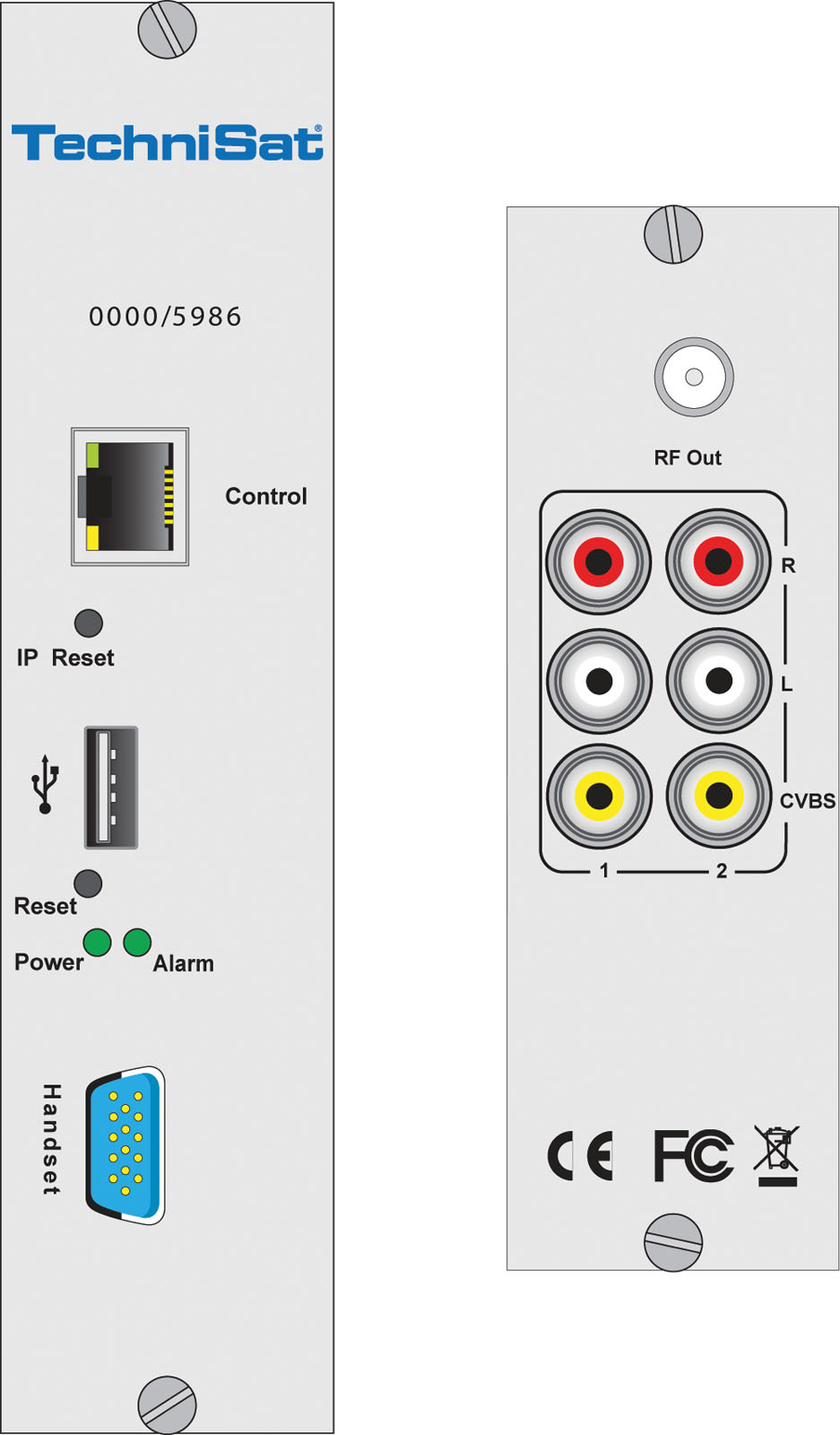

AV/PAL-TWIN-Modulator
Convert 2 AV signals into 2 analogue PAL B/G channels
| EAN |
Item no. |
Weight (Box) |
Weight |
Box |
| 4019588059863 |
0000/5986 |
300 g |
300 g |
8,5 x 16,5 x 47,5 cm |
| Ambient operating conditions |
| Ambient temperature: 0 ... 45 °C |
| Humidity: 10 ... 90 % |
| Connections |
| Ethernet 10/100 (RJ-45): Yes Remote-Control |
| Video IN: 1 |
| Audio input analogue (RCA): Yes |
| General characteristics |
| Top features: 2x Analogue AV input, PAL/NTSC,SECAM |
| Top features: Stereo sound |
| Top features: Two adjacent analog channels output in range of 48...860 MHz |
| Top features: Output level 100 dBμV per channel |
| Top features: Control and supervision by web interface or external handset |
| RF modulator |
| Modulation: CCIR PAL B/G |
| RF output converter |
| Harmonic product: ≤ -50 dB typisch |
| Noise: ≤ 45 typisch |
| C/N: ≥ 45 dB typisch |
| Output frequency: 48 ... 860 MHz |
| Output level: 100 dB per channel |
| Scope of Delivery |
| AV/PAL TWIN Modulator, Frontblende, Rückblende, AV-Adapterkabel |
