TECHNINET BS6 silver/blue
PLN 14,000.00*
PRODUCT NO LONGER AVAILABLE

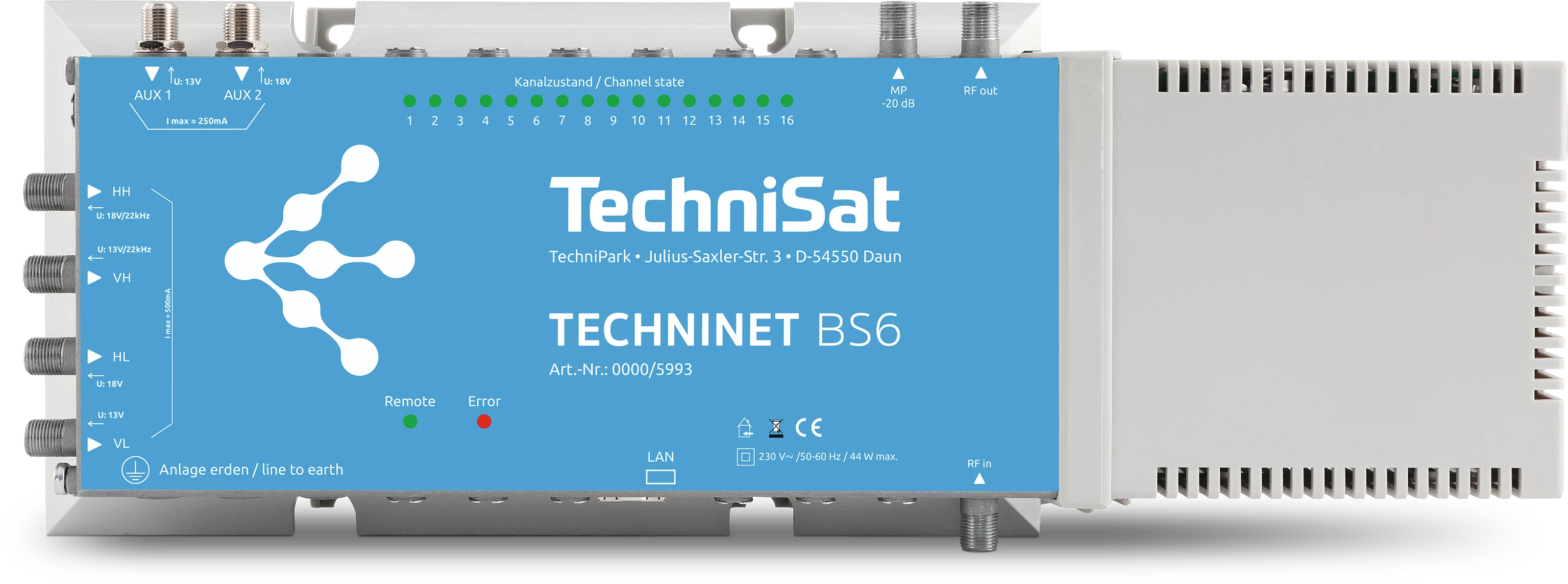

TECHNINET BS6
(0000/5993)
Digital 16-way Head-end - DVB-S(2) / DVB-C
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588059931 |
| Colour | silver/blue |
| Item no. | 0000/5993 |
| Weight (Box) | 3,11 kg |
| Weight | 2,81 kg |
| Device (W x H x D) | 37,5 x 7 x 13,5 cm |
| Box | 44 x 9 x 15,5 cm |
| Tuner (DVB-S2) | |
|---|---|
| DVB-S2 demodulator | EN 302 307 |
| Demodulation | 8PSK, QPSK |
| Symbol rates | 2 ... 45 |
| Roll off factor | 0,35 |
| FEC block size | 64 kB |
| FEC Code rate (LDPC) | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| Outer coding (BCH) | GF(2^16), t=8, 10, 12 |
| LNB control | |
|---|---|
| Vertical | 13 V |
| Horizontal | 18 V |
| Band switch | 22 kHz |
| Current consumption | max. 750 mA total |
| DiSEqC | 1 (sat. pos. (A/B/C/D)) |
| Ambient operating conditions | |
|---|---|
| Ambient temperature | -10 ... 50 °C |
| Humidity | 10 ... 75 % |
| Configuration, monitoring | |
|---|---|
| Network interface | RJ45, Ethernet, 100BaseT, TCP/IP |
| DVB-C output | |
|---|---|
| Modulation | 16-, 32-, 64-, 128-, 256-QAM |
| Symbol rate | 3,5 ... 7,2 |
| MER | Typ. 45 dB (256-QAM, with equaliser) |
| Reception range | 45 ... 862 MHz |
| Output level | 90 per carrier, adjustable |
| Secondary wave suppression | > 50 dB |
| Signal output | F socket |
| Output impedance | 75 Ω |
| Return loss | ≥ 14 dB |
| Power consumption | |
|---|---|
| In operation | 44 W |
| Power supply | |
|---|---|
| Nominal voltage | 230 V |
| Frequency | 50 Hz |
| Mains adapter | internal |
| SAT IF input / Multiswitch | |
|---|---|
| Reception range | 950 ... 2.150 MHz |
| input / output | F-socket |
| Impedance | 75 Ω |
| Input level | 45 ... 85 |
| LNB voltage supply | 13 / 18 V & 22kHz |
| LNB power supply | Max. 250 mA |
| Tuner DVB-S | |
|---|---|
| DVB-S tuner | 16 Stück |
| DVB-S demodulator | EN 300 421 |
| Demodulation | QPSK |
| Symbol rates | 2 ... 45 |
| Roll off factor | 0,35 |
| FEC code rate | 1/2, 2/4, 3/4, 5/6, 6/7, 7/8 |
| Interleaving | Convolutional; l=12 |
| Outer coding | Reed Solomon 204, 188, T=8 |
